Securing heater with holder

WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.

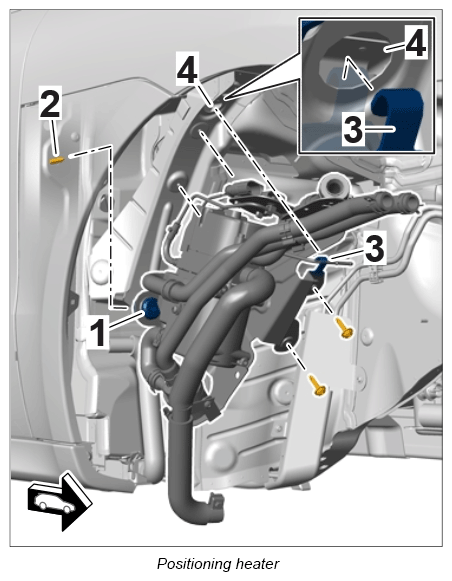

  1. Place heater in position.
    1. 1.1. Position rubber sleeve -1-  on the retaining pin -2-  .
    2. 1.2. Engage clip -3-  on the holder into the cut-out -4-  .
    G12837414Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Secure heater.

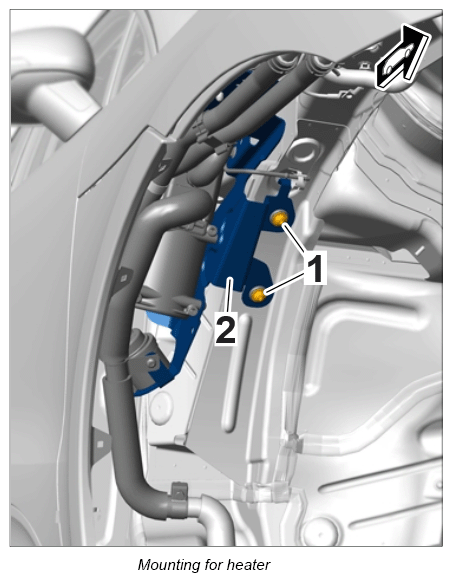

    1. 2.1. Loosely fit fastening screws -1-  for the holder -2-  at the top and bottom.
      G12837415Courtesy of PORSCHE CARS NORTH AMERICA, INC.

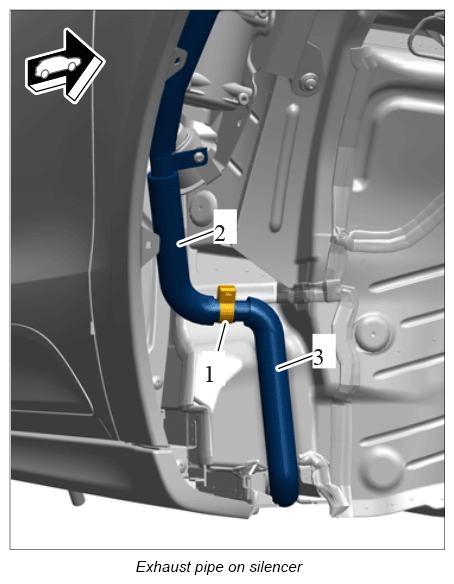

    2. 2.2. Slide flexi-pipe -2-  and screw-type clamp -1-  onto the silencer -3-  .
      G12837416Courtesy of PORSCHE CARS NORTH AMERICA, INC.
    3. 2.3. Tighten fastening screws -1-  on the holder -2-  to the prescribed tightening torque. Tightening torque 20 Nm (15 ft. lb.)
    4. 2.4. Tighten screw-type clamp -1-  .

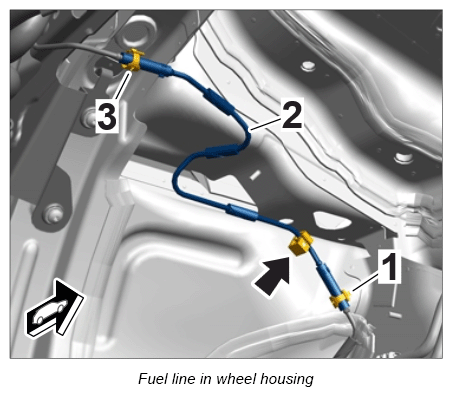

  3. Clip in fuel line -2-  in the wheel housing at position -arrow-  .
G12837417Courtesy of PORSCHE CARS NORTH AMERICA, INC.
