Loosening heater with holder

WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.

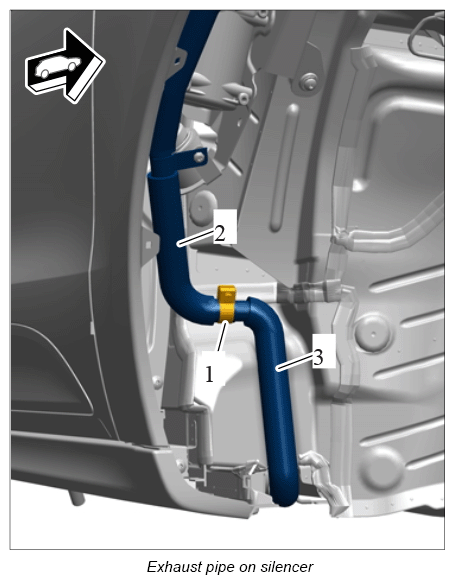

  1. Disconnect exhaust pipe from silencer.
    G12837397Courtesy of PORSCHE CARS NORTH AMERICA, INC.
    1. 1.1. Loosen screw-type clamp -1-  .
    2. 1.2. Pull flexi-pipe -2-  off the silencer pipe -3-  .

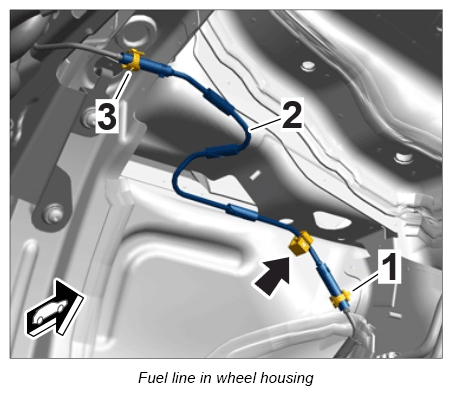

  2. Unclip fuel line -2-  in the wheel housing at position -arrow-  .
    G12837398Courtesy of PORSCHE CARS NORTH AMERICA, INC.

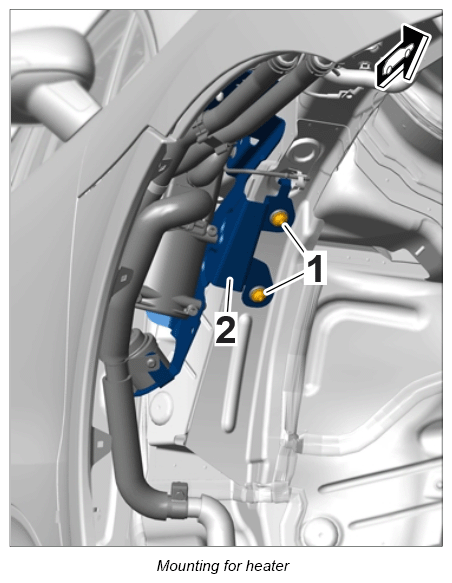

  3. Unscrew fastening screws -1-  and remove heater with holder -2-  .
    G12837399Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  4. Pull out heater with holder in direction of travel and suspend it at a suitable place in the wheel housing.
