Fitting holder to heater

WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.

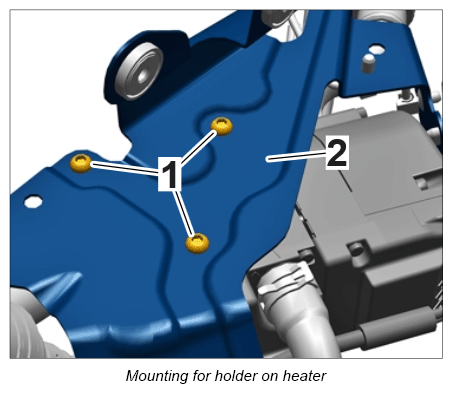

Position holder -2- on the heater.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Tighten fastening screws -1- .

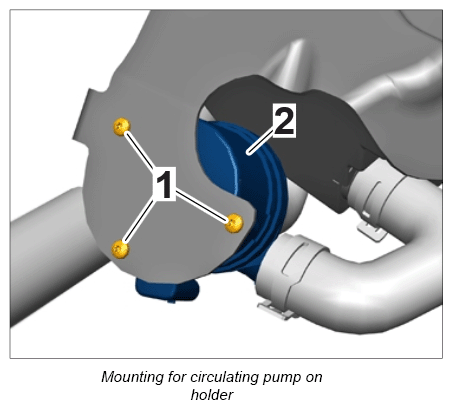

Position circulating pump and tighten fastening screws -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

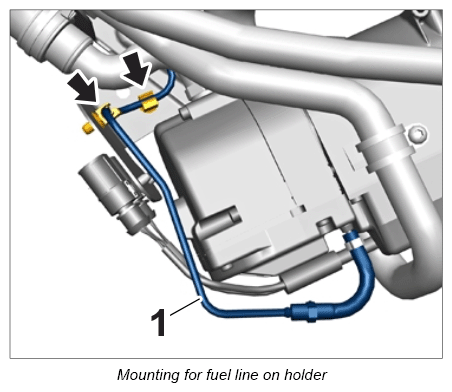

Clip in fuel line -1- at the marked positions -arrows- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

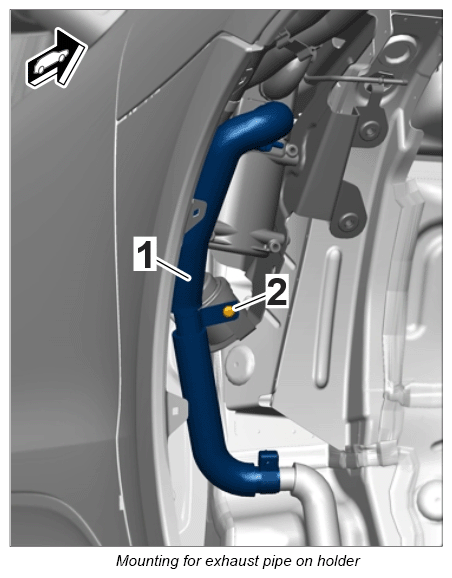

Tighten fastening screw -2- on the exhaust pipe -1- .
NOTE: Illustration shows heater when installed.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

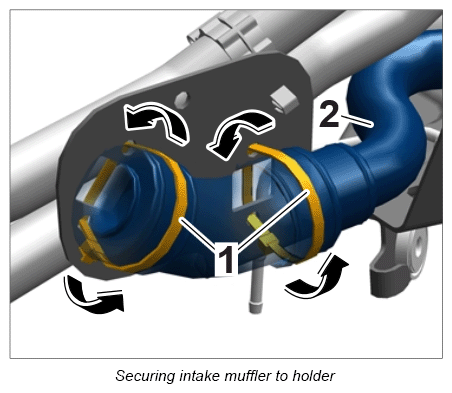

Position intake muffler -2- in the cut-outs in the holder and secure it to the holder using new tie-wraps -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

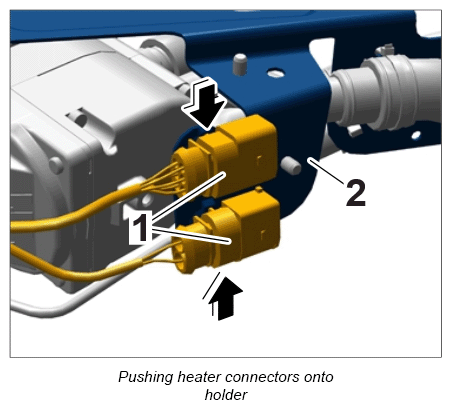

Push electric plug connections -1- sideways onto the holder -2- and engage them.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

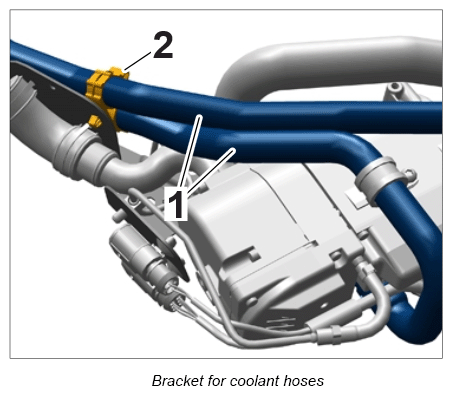

Insert coolant hoses -1- in the holder -2- and clip them in.
