Detaching holder from heater

WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.

Remove heater with holder → 822019 REMOVING AND INSTALLING COMPLETE HEATER

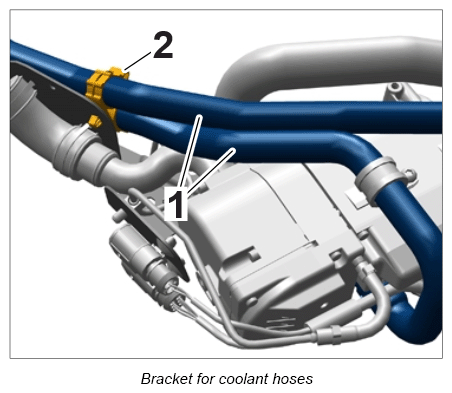

Unclip coolant hoses -1- from holder -2- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

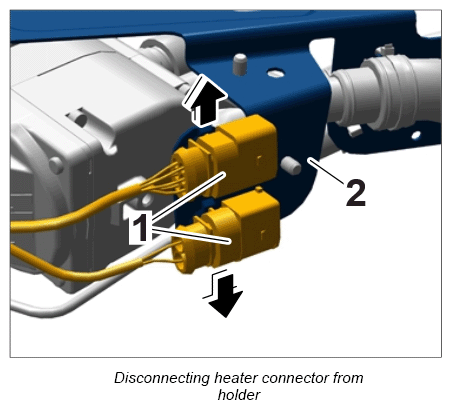

Release electric plug connections -1- and disconnect them by pulling them sideways off the holder -2- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

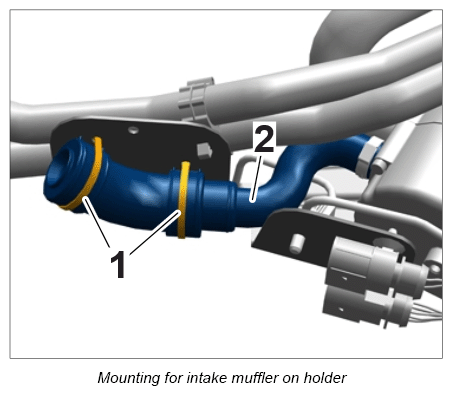

Cut tie-wrap -1- on intake muffler -2- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

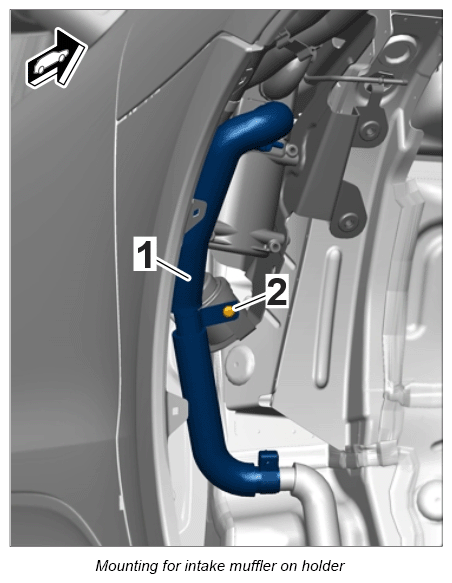

Unscrew fastening screw -2- on the exhaust pipe -1- .
NOTE: Illustration shows heater when installed.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

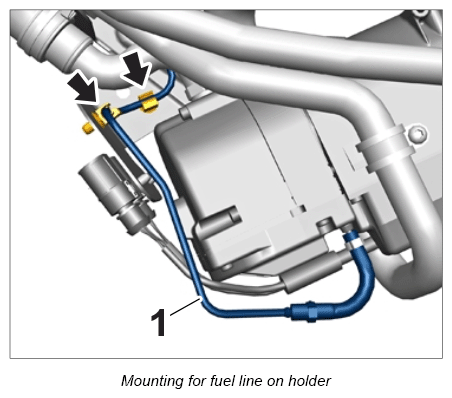

Unclip fuel line -1- at the marked positions -arrows- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

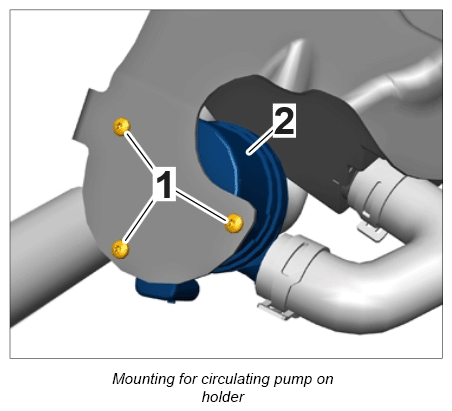

Unscrew fastening screws -1- and remove circulating pump -2- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

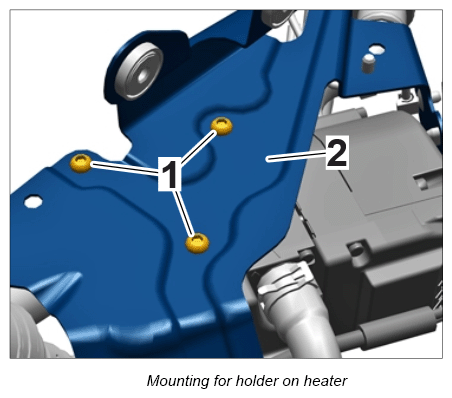

Loosen fastening screws -1- and remove holder -2- from the heater.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.
