Removing intake muffler

WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.

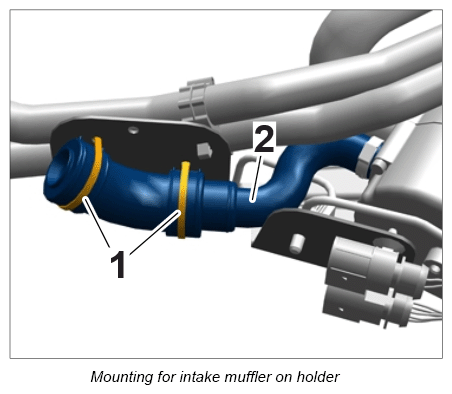

  1. Cut tie-wrap -1-  on intake muffler -2-  .
    G12837393Courtesy of PORSCHE CARS NORTH AMERICA, INC.

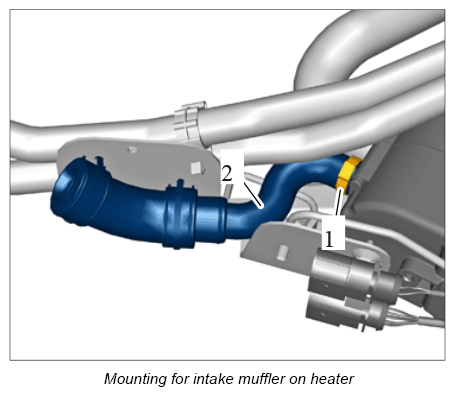

  2. Loosen clamp -1-  using a suitable tool.
    G12837394Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  3. Remove intake muffler -2-  .
