Installing intake muffler

WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.

Information

There is no guarantee that re-used clamps will secure the component properly .
Removed clamps must be replaced .
Always use new clamps during installation .

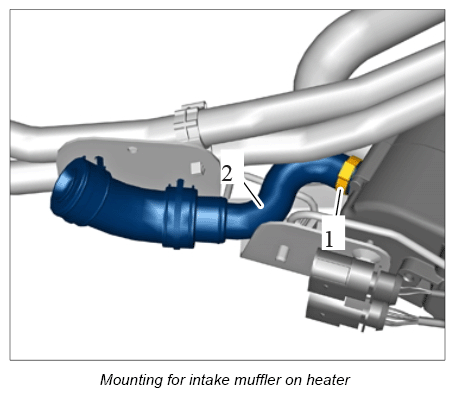

Position intake muffler -2- on the heater.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Tighten new clamp -1- using a suitable tool.

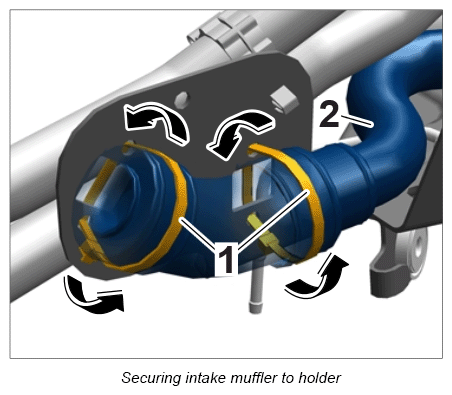

Position intake muffler -2- in the cut-outs in the holder and secure it to the holder using new tie-wraps -1- .

G12837396

Courtesy of PORSCHE CARS NORTH AMERICA, INC.
