Assembling heater
WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.
Information
- When ordering spare parts, bear in mind that there are different repair sets and sealing sets for diesel and petrol heaters .
Information
- Check components for damage. Pay particular attention to the sealing faces on the components and any seals that may be stuck on .
- Replace components with damaged sealing faces or seals .
Assembly is performed in reverse order. Pay particular attention to the following:
- Clean the various components before assembly.
- Replace any seals.
- Tighten all screws to the prescribed tightening torque.

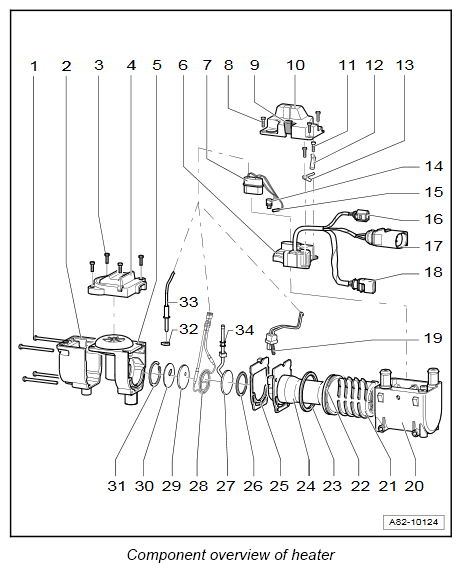

- 3.1. Screws -1- securing cover for electric motor to combustion air housing. Tightening torque 3 Nm (2 ft. lb.)
- 3.2. Screws -3- securing cover to combustion air housing. Tightening torque 3 Nm (2 ft. lb.)
- 3.3. Screws -8- securing cover for control unit to heat exchanger housing. Tightening torque 3 Nm (2 ft. lb.)
- 3.4. Screws -11- securing retaining clip to heat exchanger housing. Tightening torque 3 Nm (2 ft. lb.)
