Teaching remote control for auxiliary heating

Information

• The remote control for the auxiliary heater can only be taught using the PIWIS Tester  .
• A maximum of three remote controls can be taught per vehicle  .

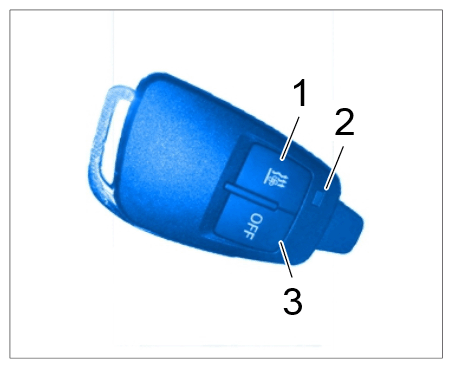

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

1. ON button
2. LED
3. OFF button

1. PIWIS Tester II 9818  must be connected to the vehicle before starting the System Tester. Switch on ignition.
2. Select the vehicle type.
3. Select the Drive links/checks  menu and press [F12] to continue.
4. Select the Teach remote control to receiver  menu, press [F12] and follow the instructions on the System Tester.
5. Press [F8] to start the teaching process.
6. Press [F8] to start the teaching process.
7. Press [F12] to continue (with basic setting). The status changes to "Measured value output with basic setting".

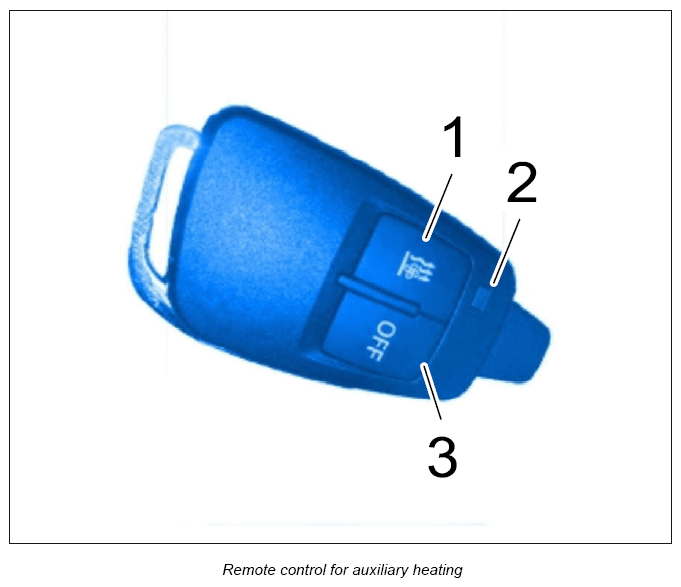

8. When the Teaching remote control  display jumps to SEND  , press the OFF  button -3-  on the remote control immediately for 3 seconds.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

9. The Teaching remote control  display changes to learned  .
10. To teach other remote controls, repeat the process.
11. Read out the fault memory  and delete any fault entries.
12. Carry out a function test on the remote control.
