Removing antenna for auxiliary heater
WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.

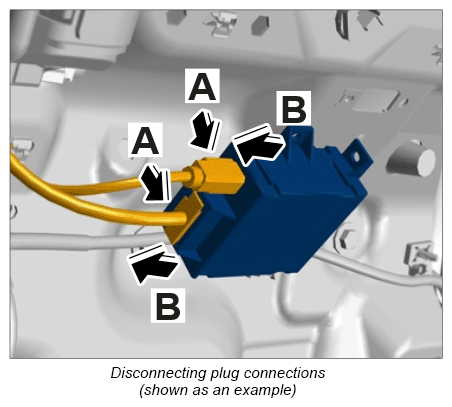

- Release plug connections -arrow A-
and pull them off -arrow B-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
- Loosen fastening screws -2-
on antenna for auxiliary heater -1-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
