Installing antenna for auxiliary heater

WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.
  1. Tighten fastening screws -2-  on antenna for auxiliary heater -1-  .
    G12837359Courtesy of PORSCHE CARS NORTH AMERICA, INC.

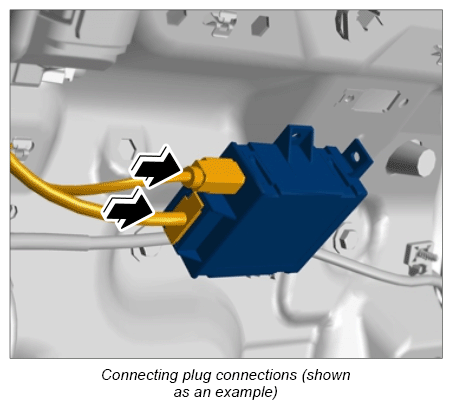

  2. Connect plug connections until they engage securely.
G12837360Courtesy of PORSCHE CARS NORTH AMERICA, INC.
