Centring camber on the front axle

WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.

Information

Camber at the front axle cannot be adjusted. But camber can be centered evenly within the tolerance range by moving the front-axle carrier.

All axle adjustment values must be checked whenever the camber is adjusted!

Remove front underbody panelling → 519219 REMOVING AND INSTALLING COVER FOR FRONT UNDERBODY .

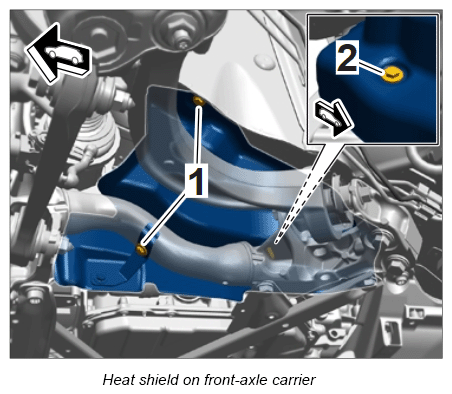

Unscrew fastening screws -1 and 2- and remove heat shields at the left and right.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

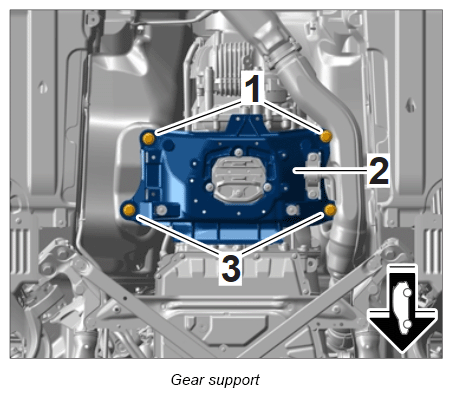

Loosen fastening screws -1 and 3- on the transmission support -2- . This ensures that the transmission mount is not strained.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

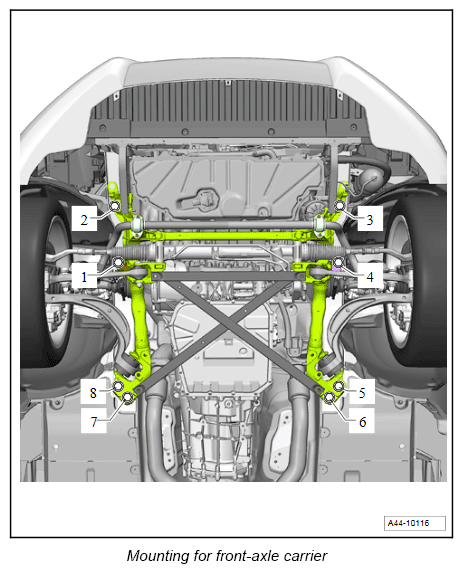

Loosen fastening screws -1 to 8- on the front-axle carrier.

Fig 1: Front-Axle Carrier Screws Loosening Sequence
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Raise the front of the vehicle at the lifting platform jacking points using an axle lift.

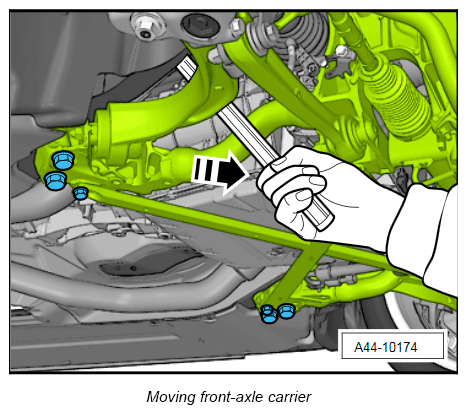

Move the front-axle carrier with engine mount and anti-roll bar to the required position using a plastic-coated tyre iron. Before checking the camber values, compress the vehicle at the front axle several times.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Screw in and tighten new fastening screws -1 and 4- one after the other.
Step 1: Initial tightening 115 Nm (85 ft. lb.)

Step 2: Final tightening +90°
Screw in and tighten new fastening screws -2 and 3- one after the other.
Step 1: Initial tightening 115 Nm (85 ft. lb.)

Step 2: Final tightening +90°
Screw in and tighten new fastening screws -5 and 8- one after the other.
Step 1: Initial tightening 115 Nm (85 ft. lb.)

Step 2: Final tightening +90°
Screw in and tighten new fastening screws -6 and 7- one after the other.
Step 1: Initial tightening 115 Nm (85 ft. lb.)

Step 2: Final tightening +90°

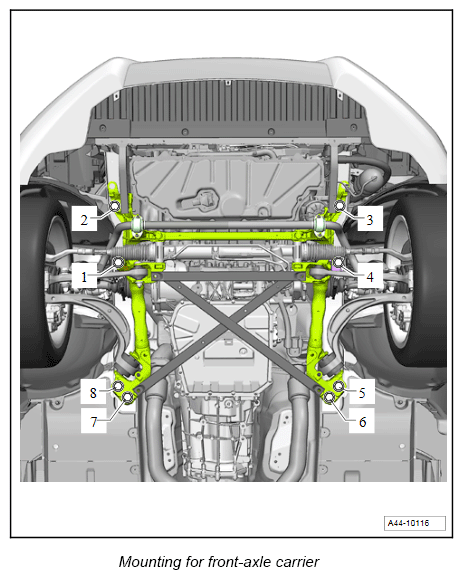

Fig 2: Front-Axle Carrier Screws Tightening Sequence
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Tighten fastening screws -1 and 3- on the transmission support -2- . Tightening torque 70 Nm (52 ft. lb.)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Check the camber value again.
Install heat shields at the left and right and tighten fastening screws -1 and 2- .
Fastening screws -1- : Tightening torque 9 Nm (6.5 ft. lb.)

Fastening screw -2- : Tightening torque 20 Nm (15 ft. lb.)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Install front underbody panelling → 519219 REMOVING AND INSTALLING COVER FOR FRONT UNDERBODY .
