Adjusting rear-axle toe
WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.

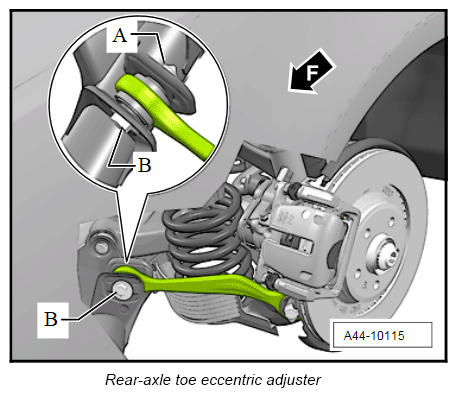

- Turn the toe eccentric adjuster -B-
as required after loosening the lock nut -A-
.
Then, tighten lock nut -A- using interchangeable head T40183 on the toe eccentric adjuster -B- (the ratchet head of the torque wrench must be inserted into interchangeable head T40183 to do this). Tightening torque 95 Nm (70 ft. lb.)
