Adjusting rear-axle camber
WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.

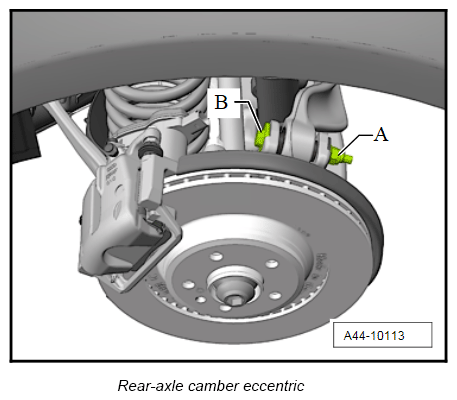

- Turn the camber eccentric adjuster -B-
as required after loosening the lock nut -A-
.
Then, tighten lock nut -A-
on the camber eccentric adjuster -B-
(ring wrench insert, a/f 18 WE 1688
can be used to do this). Tightening torque 95 Nm (70 ft. lb.)
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
