Special notes for Tyre Pressure Monitoring (TPM)

→ Read and follow the installation instructions for the wheel electronics units. → 443219 REMOVING AND INSTALLING WHEEL ELECTRONICS

→ Check that the wheel electronics units are assigned correctly. → WM 443455 Replacing TPM control unit

Information

• If the old wheels are still in the vicinity after assembly work (for example changing winter tyres and/or wheels from another vehicle with TPM), these will still be detected by the system. If one or more of these wheels has a minimum pressure of more than 0.5 bar (7 psi) below the required pressure, this can trigger a warning in the instrument cluster. In this case, remove the wheels or use the PIWIS Tester to adjust the vehicle outside the radio range of these wheels  .
• Before changing a tyre, read out the remaining life span of the wheel electronics unit (battery capacity) using the PIWIS Tester  .
• For vehicles with Tyre Pressure Monitoring (TPM), the valve and wheel electronics are only replaced in exceptional cases. The following points can make replacement necessary  .

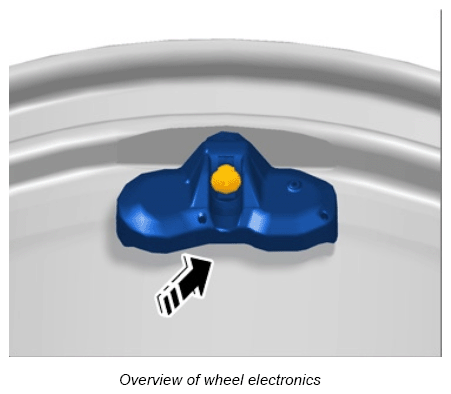

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

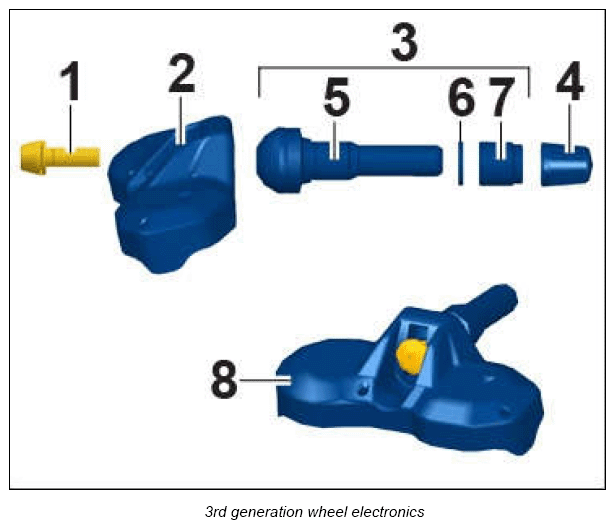

Valve must be replaced complete with screw  -1, 2, 3- if:

• The wheel electronics unit is removed
• The self-locking fastening screw -1-  is loose
• The valve body -5-  is bent
• The union nut -7-  is loose.

The wheel electronics unit  -2- must be replaced if:

• The housing is visibly deformed
• The filter surface (round, porous section on back of wheel electronics) is so badly soiled that it can no longer be cleaned by wiping
• Tyre sealing compound (tyre sealing liquid) has been used
• The service life of the battery is exceeded
• There is a fault inside the wheel electronics unit.
