Removing control unit for Tyre Pressure Monitoring (TPM)

WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Voltage peaks

Risk of damage to electrical load or to the control unit

→ Remove the ignition key and switch off load before disconnecting or removing load.

The TPM control unit is located on the rear axle on the left anti-roll-bar mount.

The antenna is integrated in the TPM control unit. For more information, see → 4X00IN GENERAL INFORMATION ON THE TYRE PRESSURE MONITORING SYSTEM (TPM) .

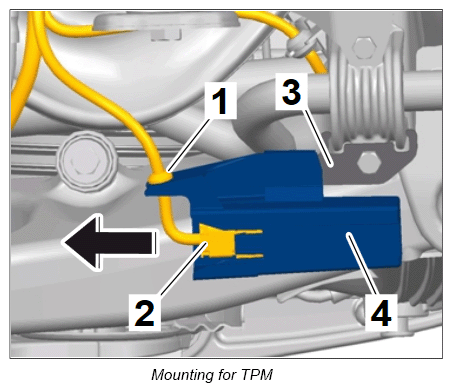

Disconnect electric line at the holder -1- .
Release and disconnect connector -2- .
Unclip TPM control unit with holder -4- on the back of the holder -3- and disconnect it.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

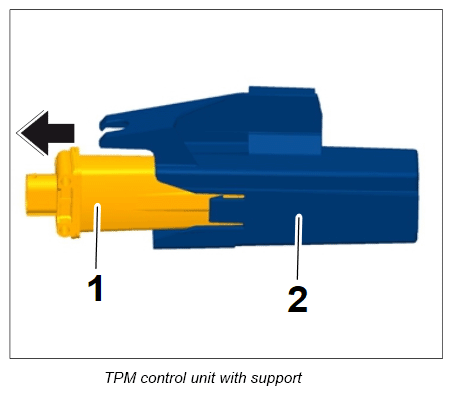

Take TPM control unit -1- out of the holder -2- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.
