Removing and installing wheel: Notes
WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.
Information

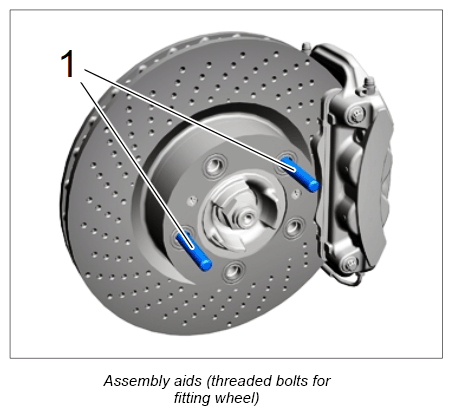

- For vehicles with PCCB, use two assembly aids (threaded bolts for fitting wheel) -1- to prevent any heavy contact between the wheel and brake disc!
- Vehicles with Tyre Pressure Monitoring (TPM): Every new set of wheels or wheel change must be communicated to the control unit (even if the new wheels have the same specifications as the old ones). To do this, select >>TPM, Settings, Tyre type and Tyre size<< in the main menu on the instrument cluster and confirm your selection. The control unit then stores these values while the vehicle is driving (at more than 25 km/h (16 mph)). The current tyre pressure is not available during this time .
- For information on teaching the TPM system , see → 4X00IN GENERAL INFORMATION ON THE TYRE PRESSURE MONITORING SYSTEM (TPM) .
- To make fitting easier, a wheel fitting trolley can be used .
NOTE:
Removing/fitting wheels
- Risk of damage to (ceramic) brake discs
→ Use two assembly pins when removing and fitting the wheel.
→ Carefully guide the wheel towards the wheel hub, thereby preventing any heavy impact on the (ceramic) brake disc.
- Remove wheel. Never use an impact bolter to loosen the wheel bolts!
- 1.1. On vehicles with PCCB (ceramic brake discs), unscrew and remove two wheel bolts that are not next to each other.
- 1.2. Replace the two removed wheel bolts with assembly aids -1- .
- 1.3. Unscrew and remove the remaining wheel bolts.
- 1.4. Carefully remove the wheel.
