Removing Surround View camera control unit
WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.
- Release and disconnect electric plug connections -1-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

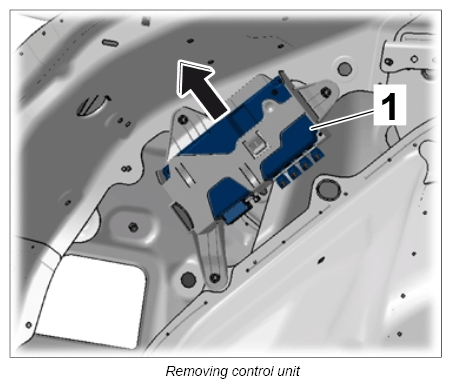

- Unclip Surround View camera control unit -1-
from its holder and remove it in an upward direction.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
