Removing Lane Change Assist display

WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove Lane Change Assist display.

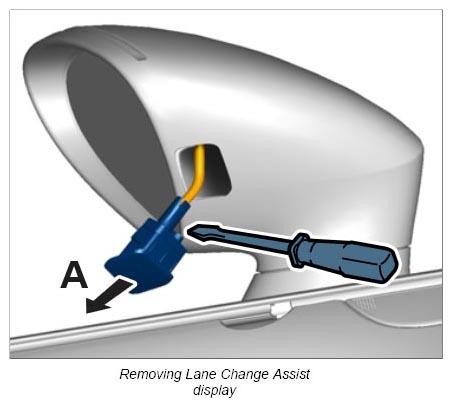

    1. 1.1. Press the display out of the housing from the inside -A-  .
    2. 1.2. Release and disconnect electric plug connection.
    G12837166Courtesy of PORSCHE CARS NORTH AMERICA, INC.
