Removing mobile communication antenna

WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.

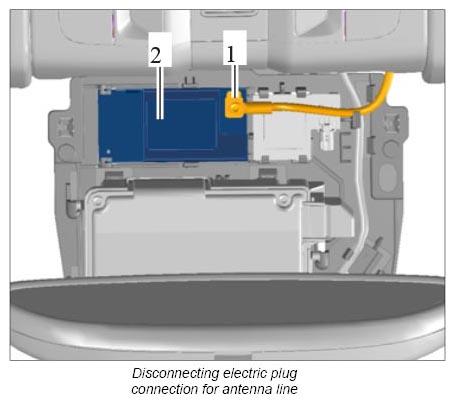

  1. Release electric plug connection -1-  and pull antenna line off the mobile communication antenna -2-  .
    G12837150Courtesy of PORSCHE CARS NORTH AMERICA, INC.

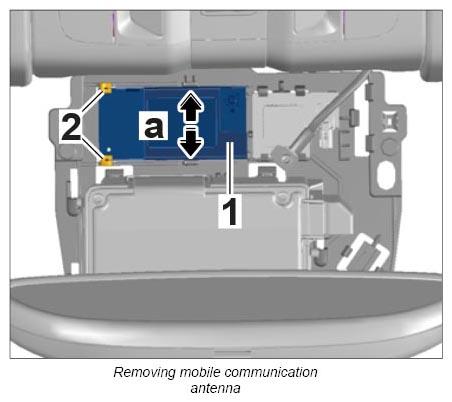

  2. Carefully disengage locking mechanisms at the left and right of the mobile communication antenna -1-

    (-a-  ) and swivel mobile communication antenna down by approx. 45°.

  3. Remove mobile communication antenna from the holders -2-  .
G12837151Courtesy of PORSCHE CARS NORTH AMERICA, INC.
