Removing rear tweeter

WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Voltage peaks

Risk of damage to electrical load or to the control unit

→ Remove the ignition key and switch off load before disconnecting or removing load.

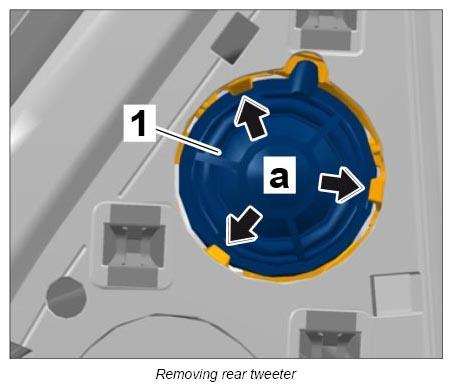

Disengage locking mechanisms -a- and remove rear tweeter -1- from the rear door panel.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

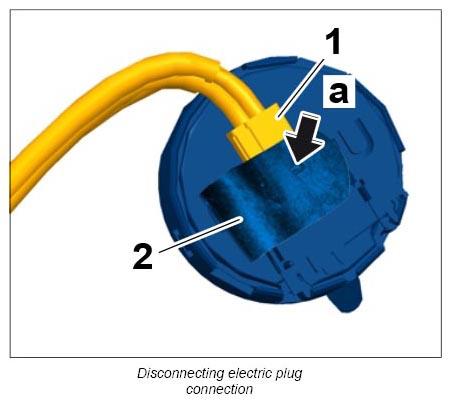

Release electric plug connection -1- (-a- ) and disconnect it from the tweeter -2- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.
