Removing rear mid-range loudspeaker
WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Voltage peaks
- Risk of damage to electrical load or to the control unit
→ Remove the ignition key and switch off load before disconnecting or removing load.

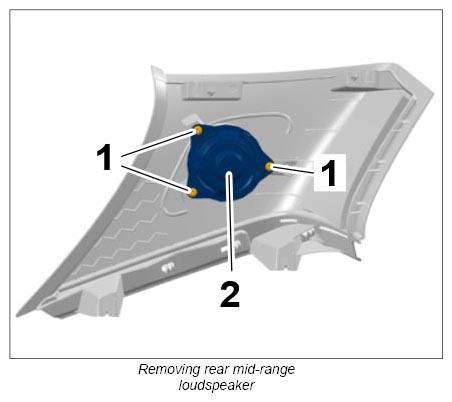

- Unscrew fastening screws -1-
and remove rear mid-range loudspeaker -2-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
