Removing woofer from door sub-frame

WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Voltage peaks

Risk of damage to electrical load or to the control unit

→ Switch off ignition and remove remote control before disconnecting or removing electrical load.

Information

Some of the repair illustrations show only one side of the vehicle or a similar component .
Naturally, some steps also have to be performed on the opposite side of the vehicle as well .

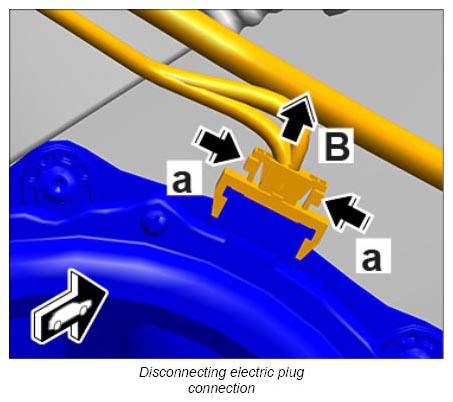

Release electric plug connection for woofer -a- and disconnect it -B- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

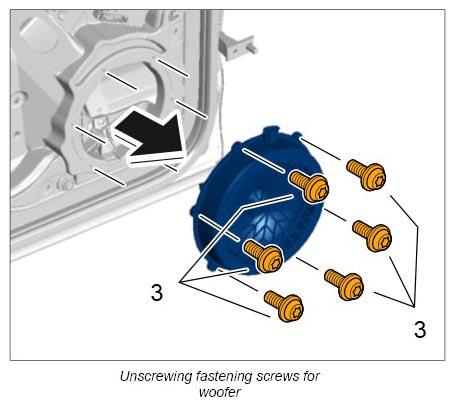

Unscrew and remove fastening screws for woofer -3- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove woofer.
