Removing front loudspeakers (dashboard) at the left and right

WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Incorrect handling of components

Risk of irreparable damage to electric and electronic components
Reduced functionality

→ Switch off the ignition, remove the ignition key and switch off the audio system before removing the loudspeakers.

Information

Some of the repair illustrations show only one side of the vehicle or a similar component .
Naturally, some steps also have to be performed on the opposite side of the vehicle as well .

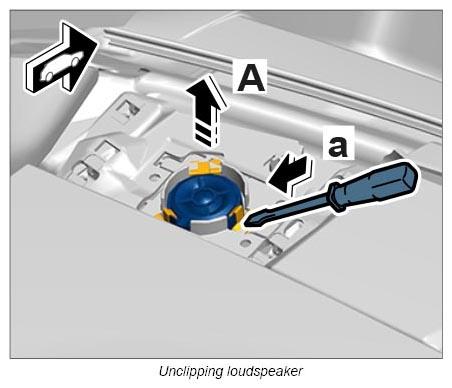

Unclip loudspeaker using a small screwdriver -a- and remove it -A- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

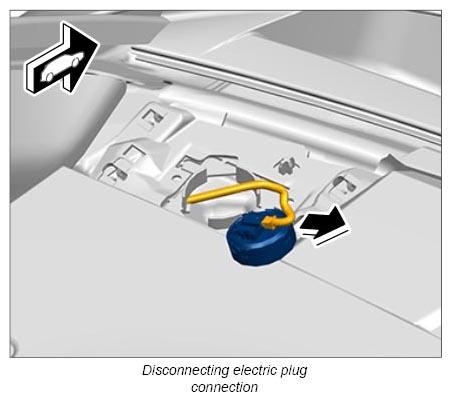

Disconnect electric plug connection.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.
