Removing rear side window

WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.

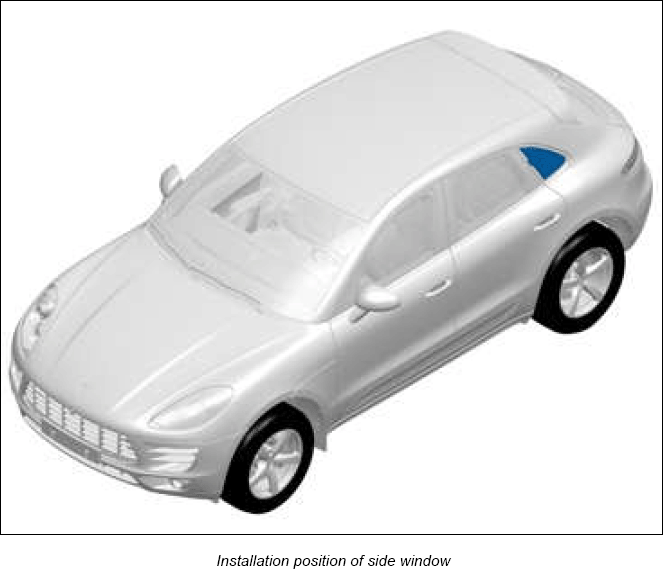

G12835530Courtesy of PORSCHE CARS NORTH AMERICA, INC.

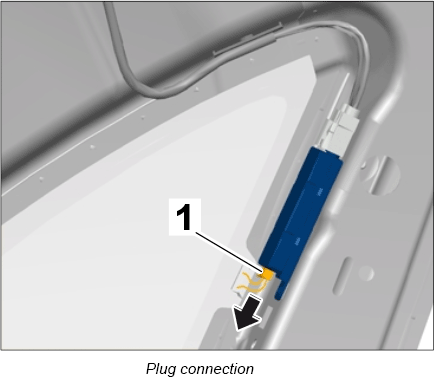

  1. Release connector -1-  for antenna amplifier and disconnect plug connection.
    G12835531Courtesy of PORSCHE CARS NORTH AMERICA, INC.

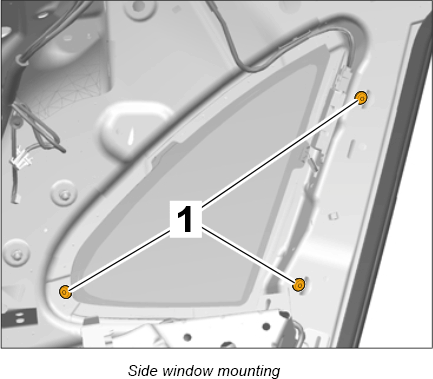

  2. Unscrew and remove fastening nuts -1-  for side window.
    G12835532Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  3. Remove side window.
