Technical values
WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.
TORQUE SPECIFICATION
| Location |
Description |
Type |
Basic value |
Tolerance 1 |
Tolerance 2 |

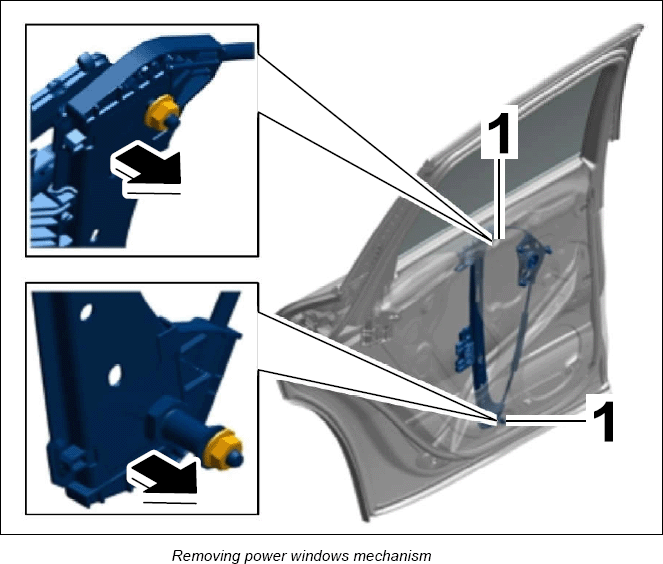

| Rear power window motor to rear door |
Internal Torx screw, Ø 5 x 22 |
Tightening torque |
3.3 Nm (2 ft lb.) |
|
|
| Fastening nut for rear window lifter |
|
Tightening torque |
7.5 Nm (5.5 ft lb.) |
|
|
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
