Removing rear power windows
WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.
- Unclip cover on door inner panel, guide out door release cable at the cover and remove cover.

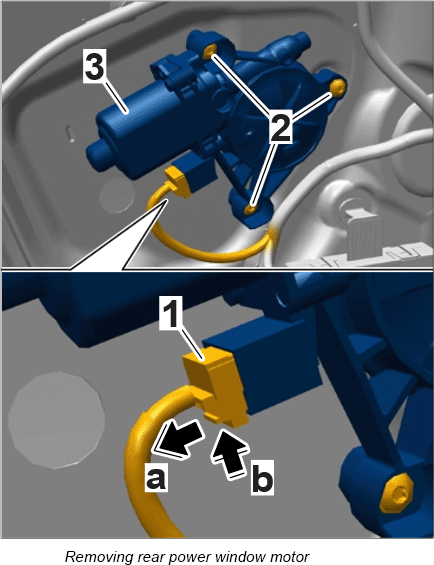

- Disconnect electric plug connection for power window motor.
- 2.1. Press release button -b- and disconnect electric plug connection -1- .
- Unscrew fastening screws -2-
and remove power window motor -3-
.

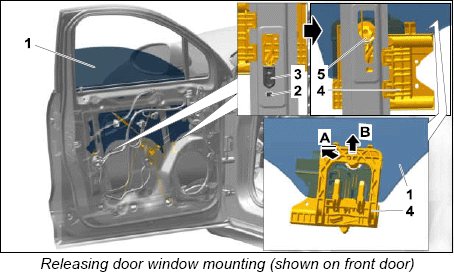

- Loosen door window glass at the power windows mechanism.
- 4.1. Actuate locking mechanism -2-
and remove limit stop -3-
on the power windows mechanism.
Move door window glass -1- down until the locking mechanism -5- is accessible.
Actuate locking mechanism -5- using a suitable tool - A- and carefully raise the door window glass -1- (- B- ).
- 4.2. Pull door window glass -1- fully up - B- out of the mounting points -4- .
- 4.1. Actuate locking mechanism -2-
and remove limit stop -3-
on the power windows mechanism.
- Slide door window glass up fully and secure it to prevent it from falling down.
- Remove stopper at the top of the bodyshell of the door.

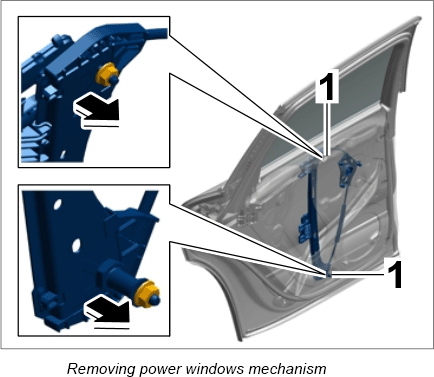

- 6.1. Loosen fastening nut at the top and unscrew and remove fastening nuts at the bottom.
- Press mounting clip for power window motor together using a suitable tool and unclip it from the bodyshell of the door.

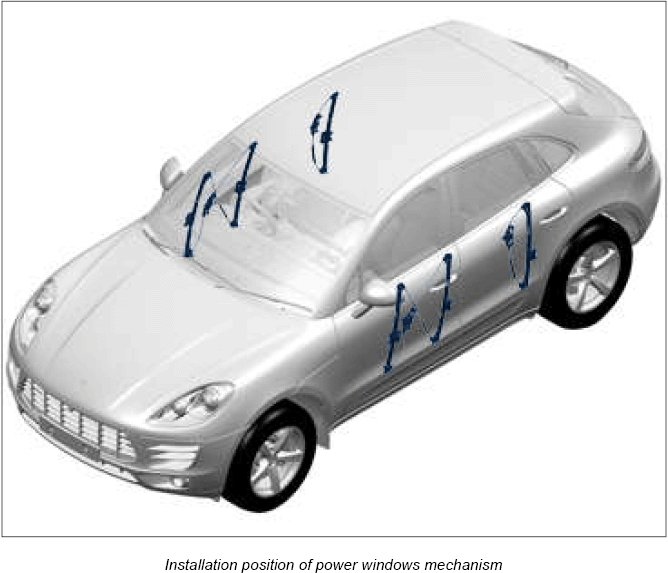

- Guide out power windows mechanism at the top and remove through the opening in the bodyshell of the door.
