Removing switch for rear power windows

WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.

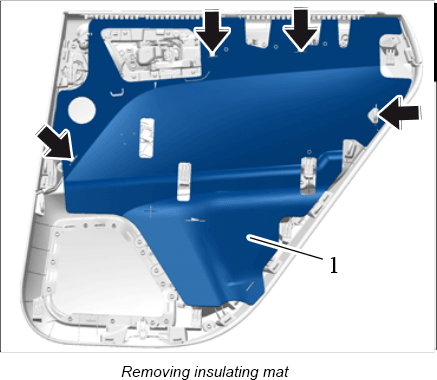

Carefully disengage insulating mat -1- from the fastening hooks and remove it.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

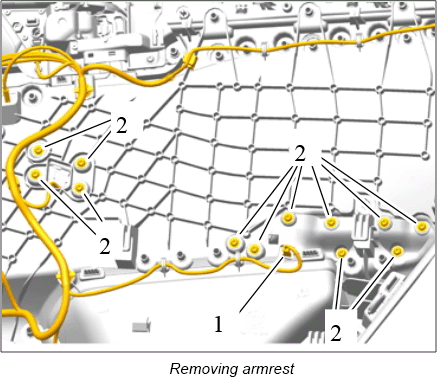

Disconnect electric plug connection -1- at the light for ambient lighting.
Unscrew fastening screws -2- on the armrest and remove armrest.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

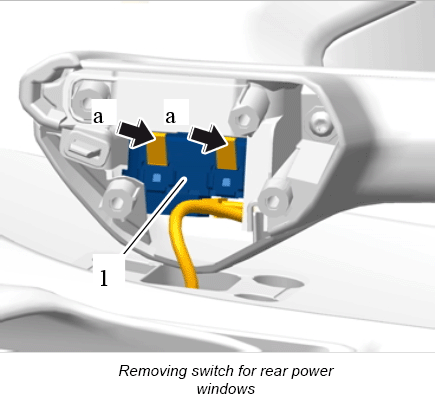

Press the catches -a- and push the rear power windows switch -1- up out of the armrest.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

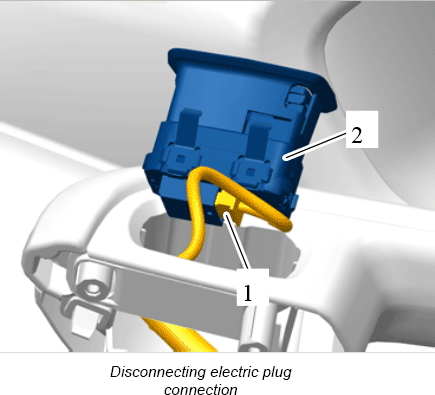

Disconnect electric plug connection -1- from the rear power windows switch -2- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.
