Removing rear window guide
WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.

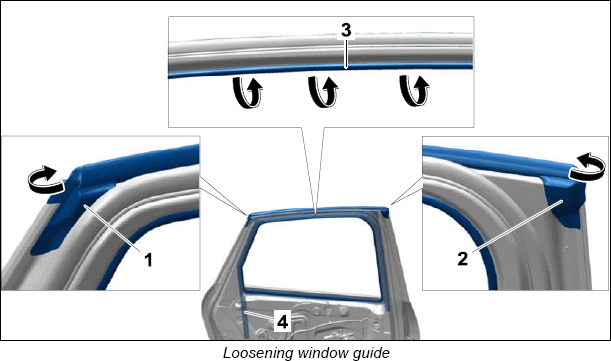

- Loosen rubber seal -1-
on the door and turn it inside out.
- Loosen rubber seal -2-
on the door and turn it inside out.
- Loosen rubber seal -3-
on the door and turn it inside out.
- Pull window guide -4-
up out of the door.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

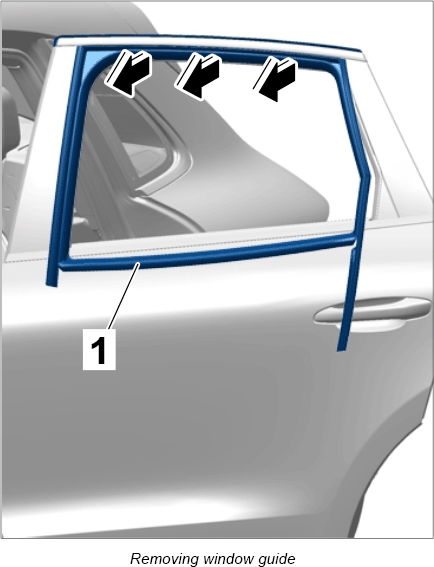

- Pull window guide -1-
off the door at the top.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
