Removing front window guide
WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.
Information
- The number of fastening screws, fixing clips, plug connections, holders and trim panels can vary depending on equipment .
- The illustrations for removing and installing the drive mechanism are shown only on one equipment variant and may differ from the actual equipment variant .
- Some steps must be carried out automatically .
- Some of the repair illustrations show only one side of the vehicle .

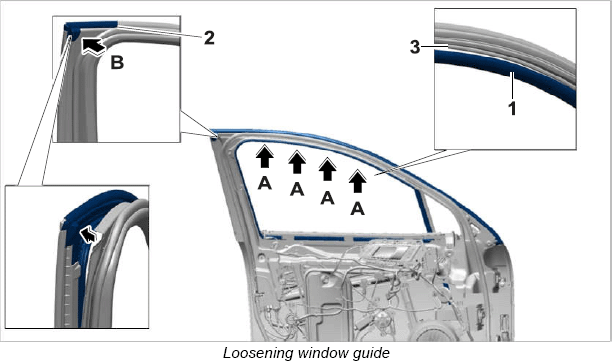

- Loosen rubber lip -1- of the window guide -2- in area -A- on the sheetmetal seam -3- .
- Fold over window guide -2-
in area -B-
and pull window guide -2-
off the door.

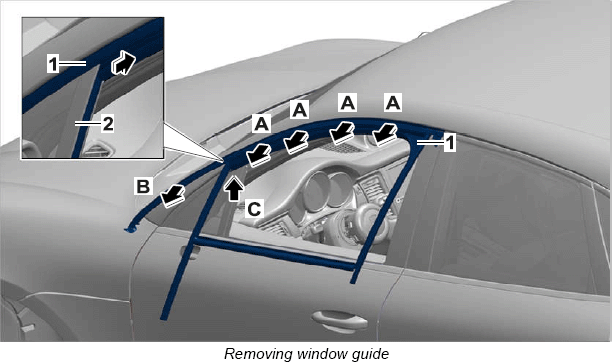

- Loosen window guide -1- in the upper area -A- from the door.
- Pull window guide -1- to the rear and out of the guide -2- .
- Loosen window guide -1- in the front area -B- from the door.
- Pull window guide -1- up completely -C- and remove it from the guide -2- .
