Installing front window guide

WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.
  1. Installation is performed in reverse order. Pay particular attention to the following:
  2. Coat window guide with rubber lubricant before fitting.
  3. Make sure that the front window guide is fitted correctly.
    1. 3.1. Position the seal as far as possible towards the front at the marked positions.

      The seal must be fitted perfectly, without gaps.

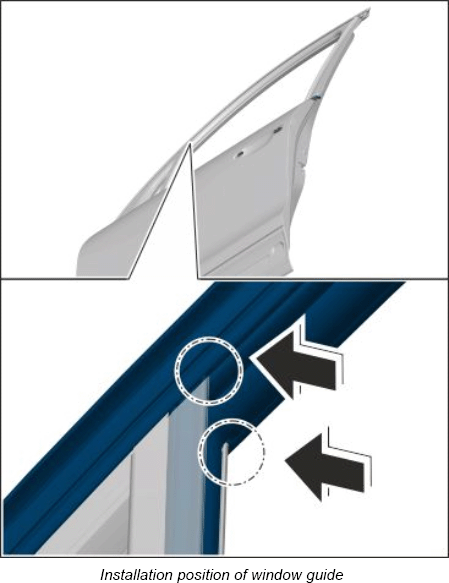

      G12835501Courtesy of PORSCHE CARS NORTH AMERICA, INC.

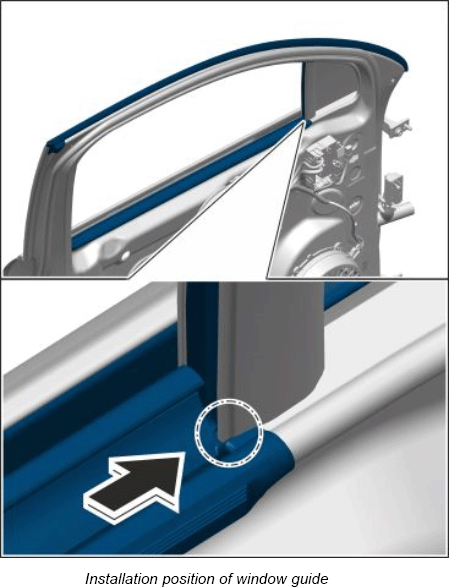

      G12835502Courtesy of PORSCHE CARS NORTH AMERICA, INC.
    2. 3.2. After positioning the seal towards the front, make sure there is no gap at the rear. The seal must also be fitted perfectly here.

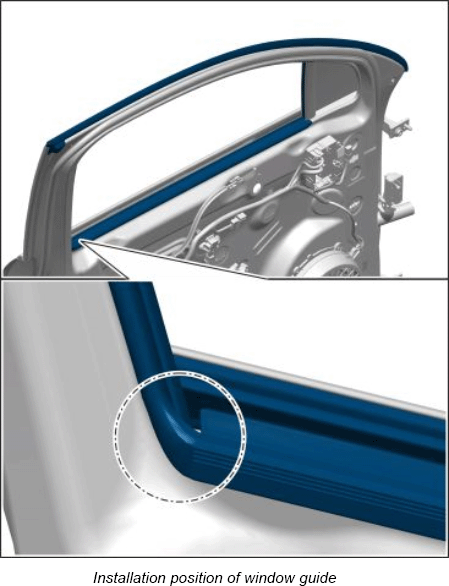

    G12835503Courtesy of PORSCHE CARS NORTH AMERICA, INC.
