Removing front door window
WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.

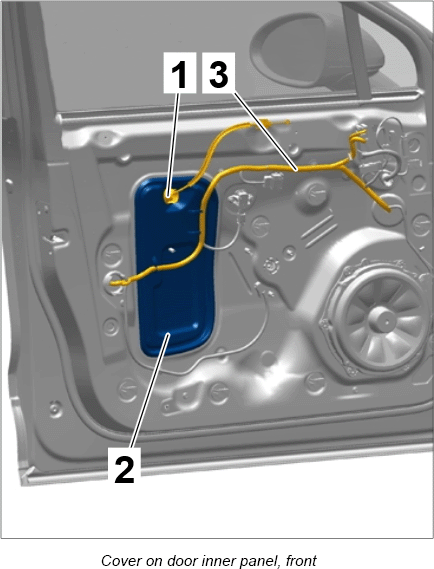

- Guide out rubber seal -1- at the cover -2- .
- Guide out wire harness -3- at the brackets for the cover -2- .
- Unclip cover -2-
on door inner panel, guide out door release cable at the cover -2-
and remove cover -2-
.

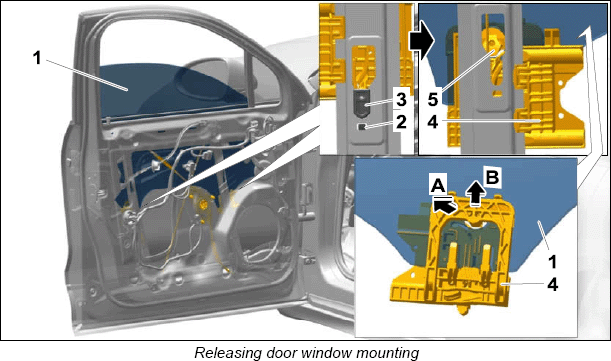

- Slide the window down until the mountings -4- are accessible through the cut-outs in the door inner panel.
- Loosen door window glass -1-
from the relevant mounting points -4-
on the power windows mechanism.
- 5.1. Actuate locking mechanism -2-
and remove limit stop -3-
on the power windows mechanism.
Move door window glass -1- down until the locking mechanism -5- is accessible.
Actuate locking mechanism -5- using a suitable tool - A- and carefully raise the door window glass -1- (-B- ).
- 5.2. Pull door window glass -1- fully up -B- out of the mounting points -4- .
- 5.1. Actuate locking mechanism -2-
and remove limit stop -3-
on the power windows mechanism.

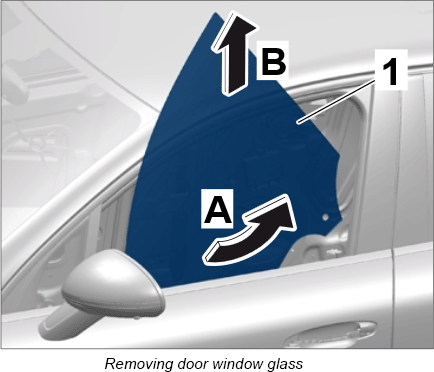

- Pull door window glass -1- up slightly, tilt it forward at an angle - A- and pull it up - B- out of the window guide.
