Removing front corner window pane

WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.

Information

The number of fastening screws, fixing clips, plug connections, holders and trim panels can vary depending on equipment .
The illustrations for removing and installing the drive mechanism are shown only on one equipment variant and may differ from the actual equipment variant .
Some steps must be carried out automatically .
Some of the repair illustrations show only one side of the vehicle .

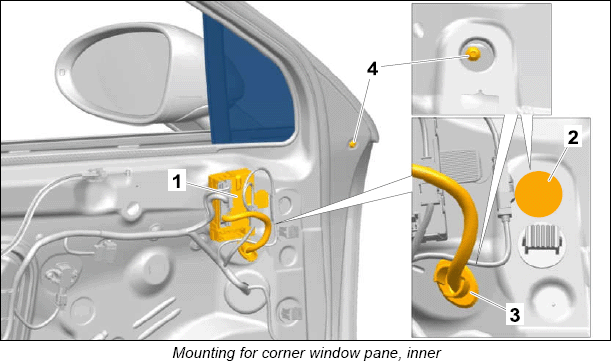

Disengage door control unit -1- at the door inner panel and set it aside with lines connected. → 577319 REMOVING AND INSTALLING FRONT DOOR CONTROL UNIT
Remove adhesive pad -2- .
Guide rubber seal -3- out of the door inner panel.
Unscrew screws -4- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

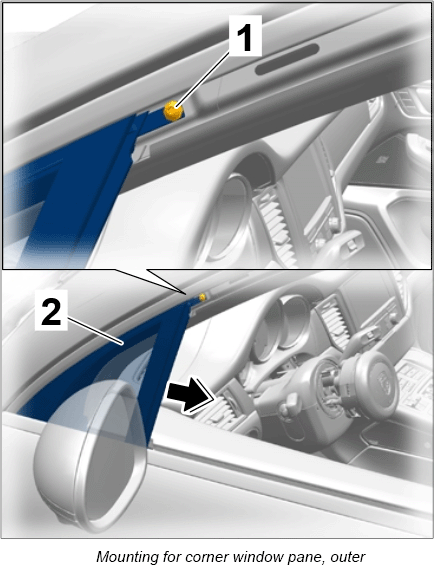

Unscrew screw -1- .
Carefully push corner window pane -2- to the rear.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

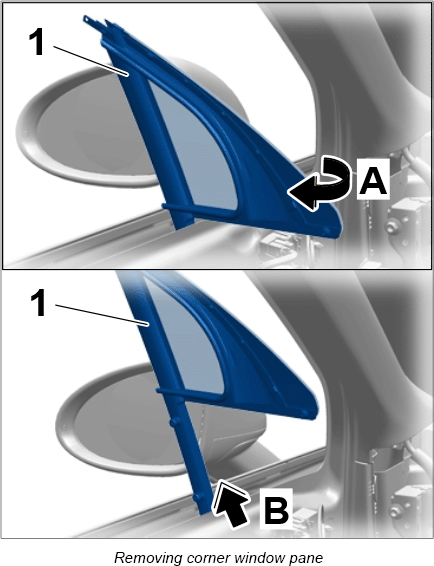

Swivel front corner window pane -1- inwards -A- and guide corner window pane -1- with window guide up -B- out of the door.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.
