Removing rear door control unit
WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Voltage peaks
- Risk of damage to load or to the control unit
→ Remove the ignition key and switch off load before disconnecting or removing load.
Information
Always comply with the regulations for handling ESD-sensitive components!
- Always wear approved work clothes and shoes when carrying out assembly work .
- Do not remove new parts from ESD (electrostatic discharge) protective packaging until shortly before installation .
- Do not touch electric pins and plug contacts .
- Switch off ignition and pull remote control out of ignition lock.

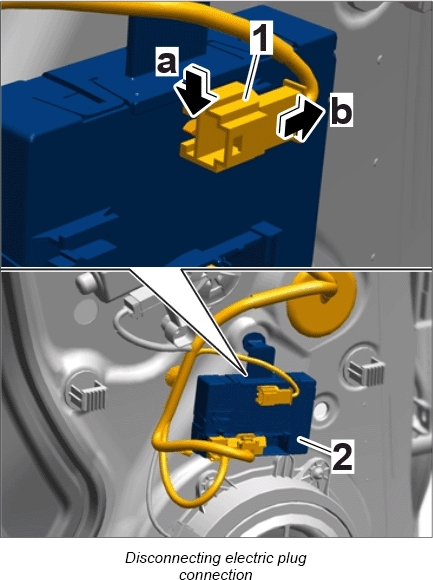

- Release electric connector -1-
(-a-
) and disconnect it from the rear door control unit -2-
(-b-
).

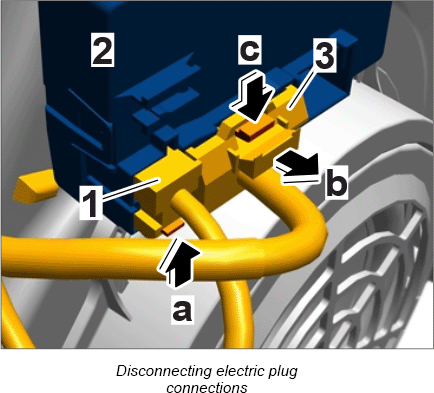

- Release electric plug connection -1- (-a- ) and disconnect it from the rear door control unit -2- .
- Pull locking mechanism -b-
, press release button -c-
and pull off electric plug connection -3-
.

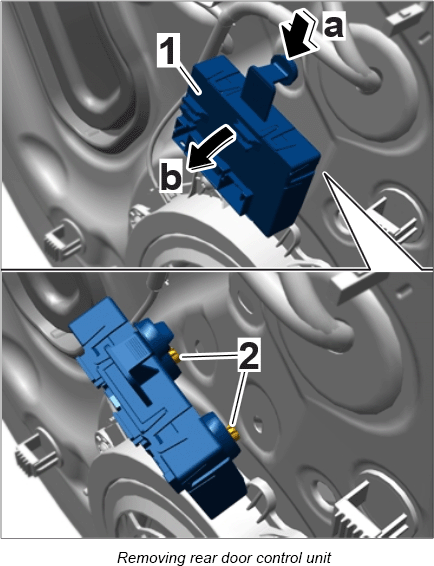

- Release locking lug -a- and disconnect top of rear door control unit -1- from the rear door -b- .
- Pull retaining lugs -2- on rear door control unit up out of the door.
