Technical values
WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.
TORQUE SPECIFICATION
| Location | Description | Type | Basic value | Tolerance 1 | Tolerance 2 |
|---|---|---|---|---|---|
| Fastening screw for door arrester | Item 1 | Tightening torque | 33 Nm (24 ft. lb.) | ||
|

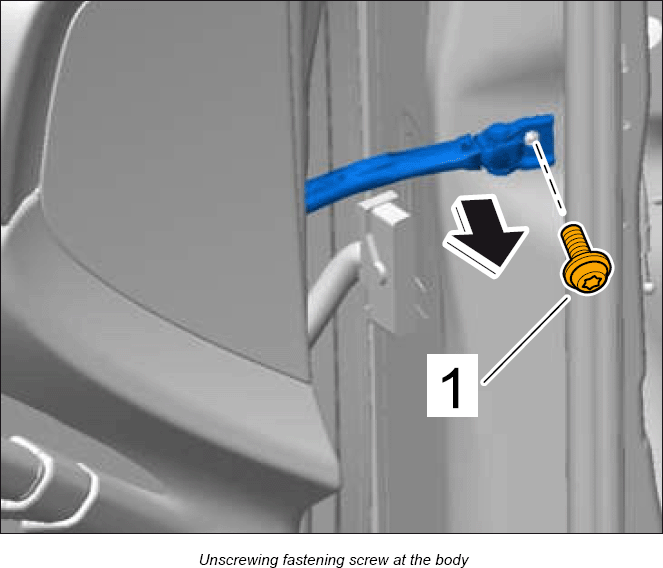

Unscrewing fastening screw at the body |
|||||
| Fastening screw for door stay | Item 2 | Tightening torque | 8 Nm (6 ft. lb.) | ||
|
Unscrewing fastening screws for door |
|||||
