Technical values: Overview
WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.
TORQUE SPECIFICATION
| Location | Description | Type | Basic value | Tolerance 1 | Tolerance 2 |
|---|---|---|---|---|---|
| Fastening screw for lock peg (striker pin) | Tightening torque | 25 Nm (19 ft. lb.) | |||
|

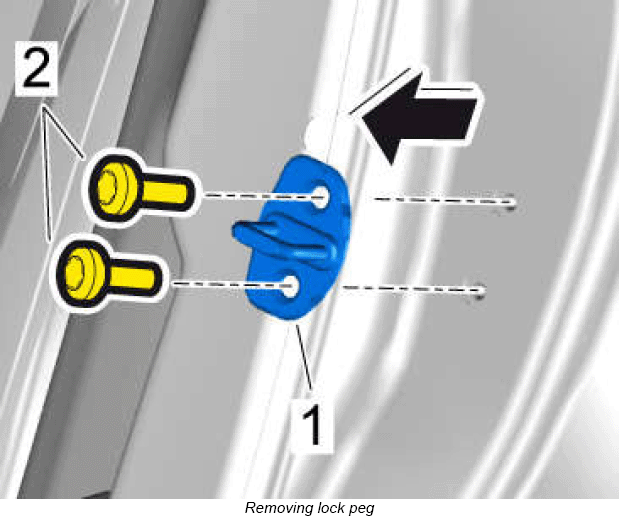

Removing lock peg |
|||||
| Fastening screw securing door hinge to rear door | Tightening torque | 55 Nm (41 ft. lb.) | |||
|

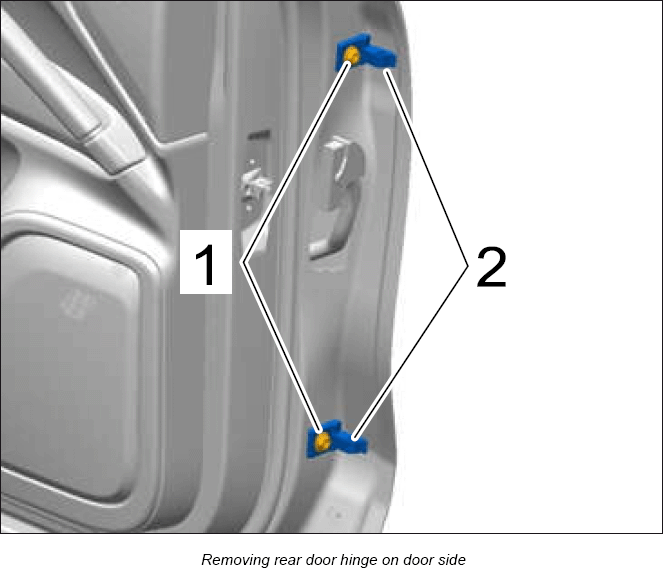

Removing rear door hinge on door side |
|||||
| Fastening screw securing door hinge to B-pillar | Tightening torque | 50 Nm (37 ft. lb.) | |||
|

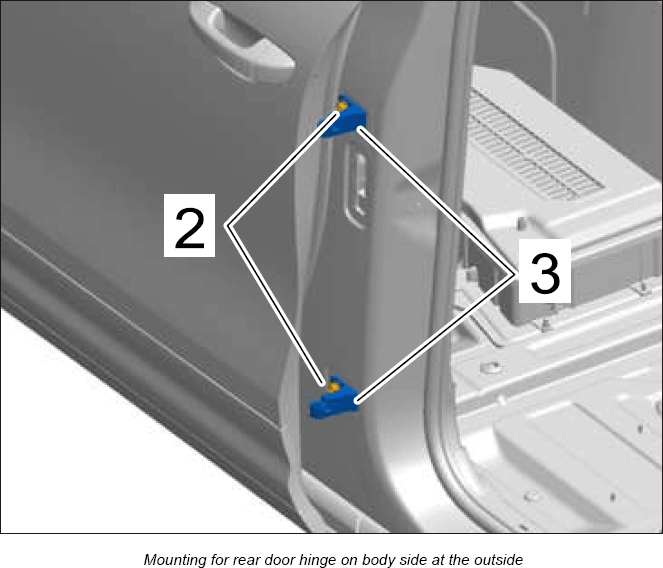

Mounting for rear door hinge on body side at the outside |
|||||
| Fastening screw securing door hinge to inner B-pillar | Tightening torque | 50 Nm (37 ft. lb.) | |||
|

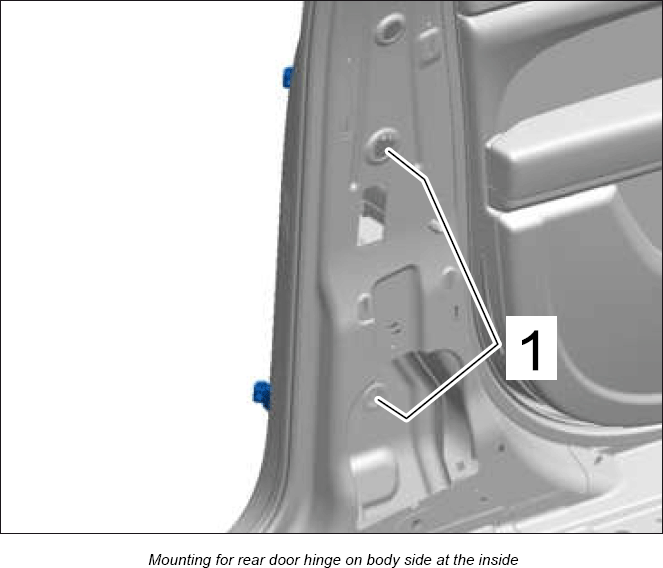

Mounting for rear door hinge on body side at the inside |
|||||
