Adjusting rear door
WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Incorrect handling of safety bolts
- Danger of injury
- Loss of torque
→ Always use new fastening screws and nuts following removal.
→ Observe specified tightening torques.
→ Carry out a visual inspection of all re-used parts.
Information
Only tighten the fastening screws on the door hinges hand-tight from the inside until the doors are set correctly.
Information
- Set gap dimensions on the lids, doors and covers, or accessories in accordance with the gap specifications .
- Given a clearance in the openings that is too great or too small, the movable body parts or the accessories must be centered accordingly .
- Ensure that the gaps do not run in a wedge-shaped fashion or do not narrow at local points .
- You can use Setting gauge WE 1690 Setting gauge, 4.5 - 6.5 WE 1724 Setting gauge, 7 - 9 WE 1725 for this .
- The given values are guidelines which should be observed as far as possible .
- The guidelines apply to repair and assembly work .
Information
- The door hinge must be aligned after installing the door .
- Loosen fastening screws for door hinge at the door and fastening screws for door hinge at the B-pillar so that the threaded connections can be moved .
Information
- The number of fastening screws, fixing clips, plug connections, holders and trim panels can vary depending on equipment .
- The illustrations for removing and installing the drive mechanism are shown only on one equipment variant and may differ from the actual equipment variant .
- Some steps must be carried out automatically .
- Some of the repair illustrations show only one side of the vehicle .
- Adjust rear door with door hinge at the door.

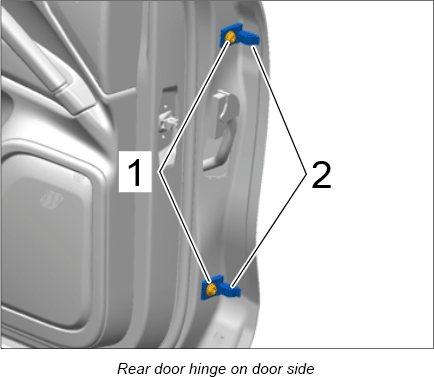

No. Component Function Procedure 1. Fastening screw -1- securing door hinge -2- to rear door Adjustment of gap dimensions in Y and Z direction Loosen. 2. Rear door Adjust gap dimensions in X and Y direction by moving the door. 3. Fastening screw -1- securing door hinge -2- to rear door Adjustment of gap dimensions in Y and Z direction Tighten fastening screw -1- securing door hinge -2- to rear door to Tightening torque 55 Nm (41 ft. lb.) . - Adjust rear door with door hinge at the body.

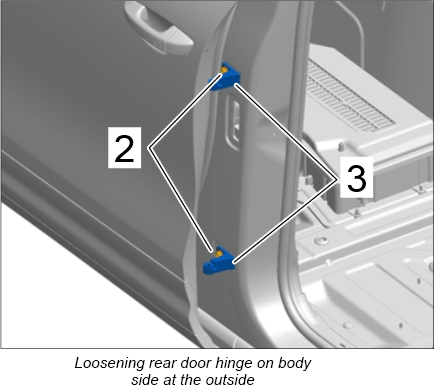

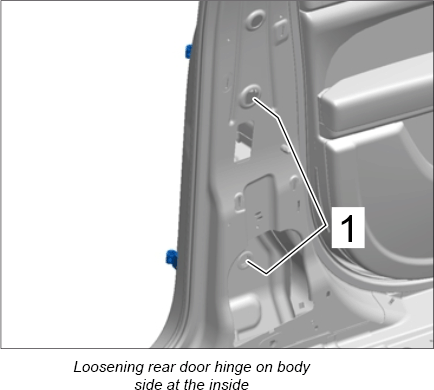

No. Component Function Procedure 1. Fastening screws securing door hinge to body on outside -2- and inside -1- → 585319 REMOVING AND INSTALLING REAR DOOR HINGE - "REMOVING" Adjustment of gap dimensions in X and Z direction Loosen. 2. Rear door Adjust gap dimensions in Z direction by moving the rear door. 3. Fastening screws securing door hinge to body on outside -2- and inside -1- → 585319 REMOVING AND INSTALLING REAR DOOR HINGE - "INSTALLING" Adjustment of gap dimensions in X and Z direction Tighten fastening screws securing door hinge to body on outside -2- and inside -1- Tightening torque 50 Nm (37 ft. lb.) Tightening torque 50 Nm (37 ft. lb.) . - Adjust rear door with lock peg (striker pin).

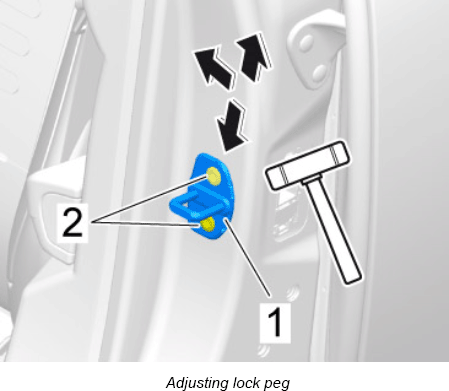

No. Component Function Procedure 1. Fastening screws -2- for lock peg -1- at the rear Locking mechanism for rear door Loosen. 2. Rear door Adjust gap dimensions in Y and Z direction at the rear by moving the rear door. 3. Fastening screws -2- for lock peg -1- at the rear Adjust gap dimensions in Z direction at the rear by moving the rear door. Tighten fastening screws -2- for lock peg -1- at the rear to Tightening torque 25 Nm (19 ft. lb.) .
