Removing inner door release
WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.
Information
- The number of fastening screws, fixing clips, plug connections, holders and trim panels can vary depending on equipment .
- The illustrations for removing and installing the drive mechanism are shown only on one equipment variant and may differ from the actual equipment variant .
- Some steps must be carried out automatically .
- Some of the repair illustrations show only one side of the vehicle .

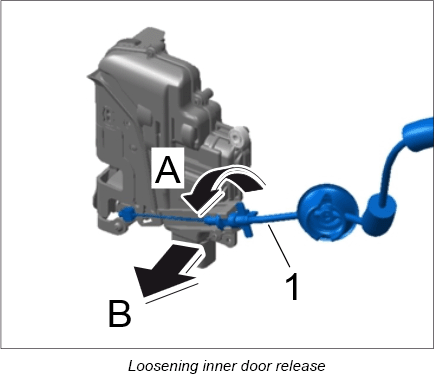

- Loosen inner door release -1-
at the door lock.
- 1.1. Turn bowden cable clip 90° -A- and remove it from the bracket -B- .

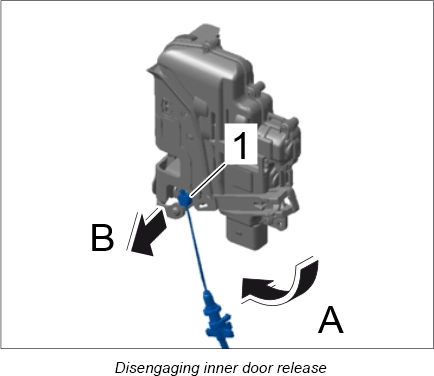

- Disengage driver for inner door release.
- 2.1. Turn inner door release -A- until the driver in the mounting is released.
- 2.2. Remove driver for inner door release -1- from the mounting -B- .
