Technical values

WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.
TORQUE SPECIFICATION

Location Description Type Basic value Tolerance 1 Tolerance 2
Fastening screw for rear door lock   Tightening torque 20 Nm (15 ft. lb.)
G12835167

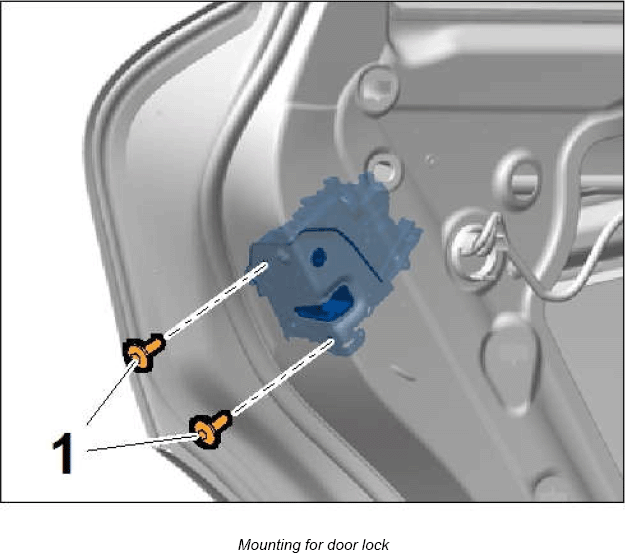

Mounting for door lock
