Removing rear door lock

WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.

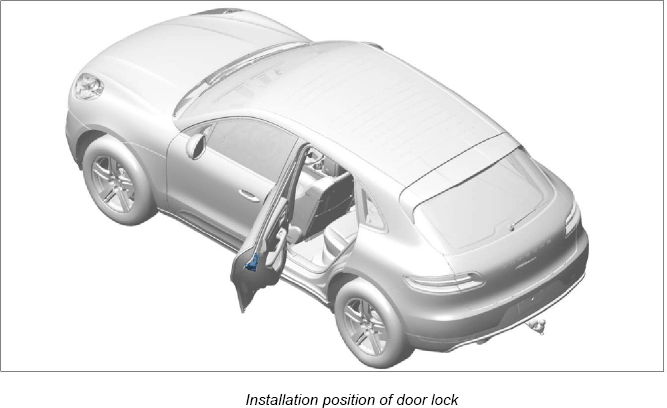

G12835168

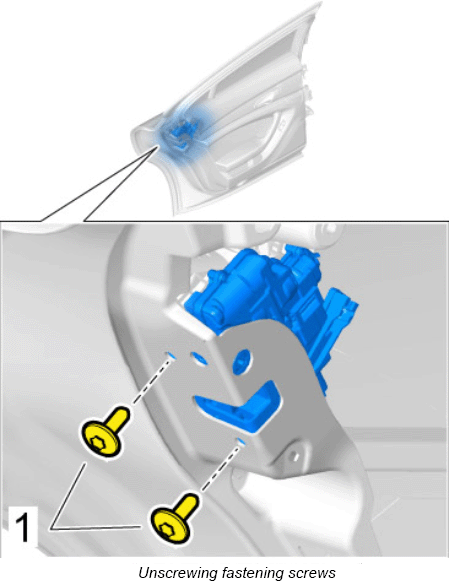

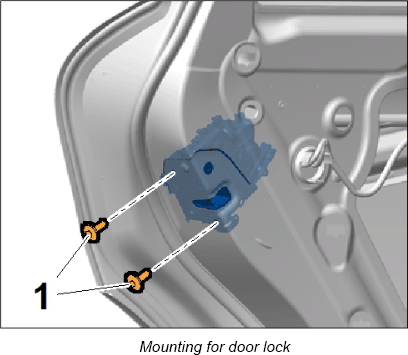

  1. Unscrew and remove fastening screws -1-  .
    G12835169
    G12835170
  2. Guide bowden cable for inner door opener out through the basic door frame.
  3. Remove door lock.

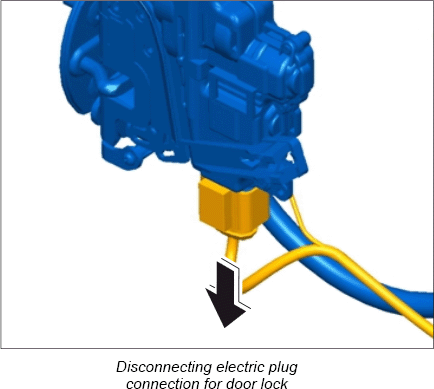

  4. Disconnect electric plug connection from the door lock.
    G12835171

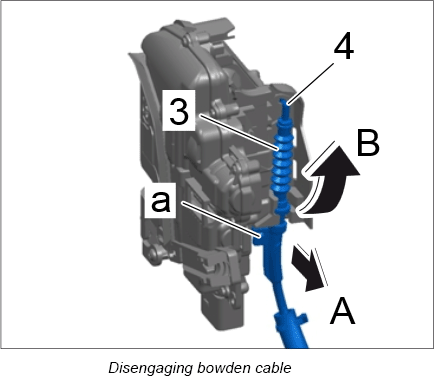

  5. Disengage bowden cable from the door lock to the outer handle in the door lock.
    G12835172
    1. 5.1. Release bowden cable bracket -3-  (-a-  ) and unclip it -A-  .
    2. 5.2. Turn bowden cable bracket by 90° -B-  and disengage the catch -4-  .
  6. Remove door lock.
