Removing rear door handle

WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.

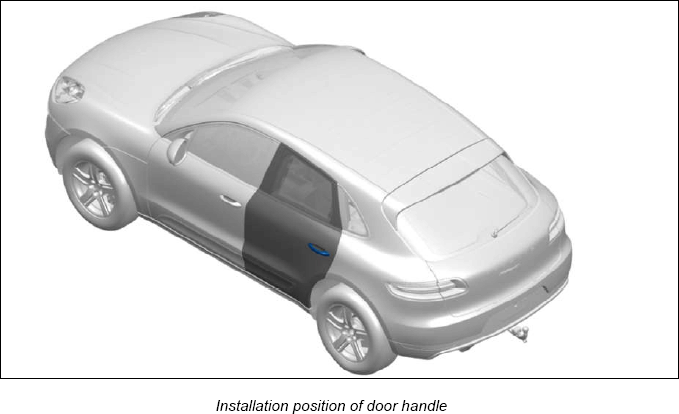

G12835163

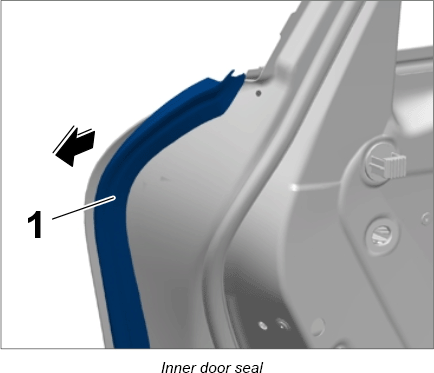

  1. Unclip inner door seal -1-  in the door handle area.
    G12835164

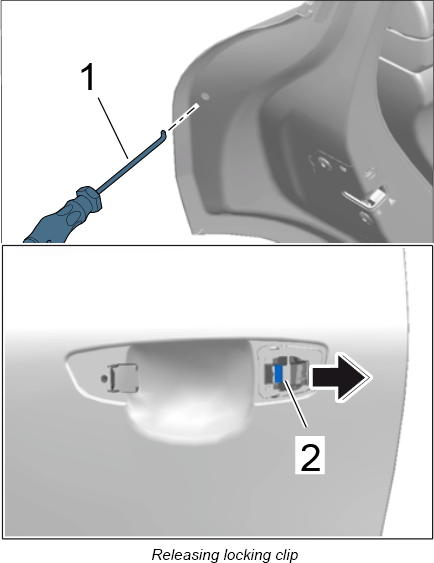

  2. Insert removal and assembly tool T10389 -1-  into the rear door and pull the locking clip -2-  to the rear.
    G12835165
  3. Pull door handle -1-  to the rear and unhook it.

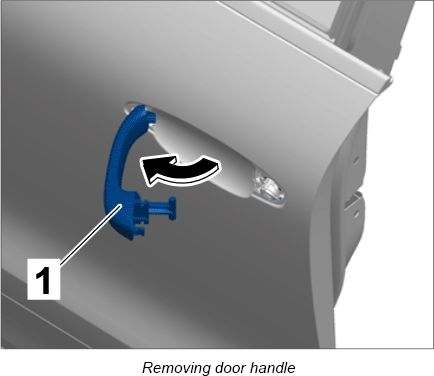

    G12835166
    1. 3.1. Swivel door handle out by 90° and pull it out of the inner part.
    2. 3.2. Remove door handle with protection cap.
