Removing control unit for rear-end electronics

WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Voltage peaks

Risk of damage to electrical load or to the control unit

→ Remove the ignition key and switch off load before disconnecting or removing load.

Information

Always comply with the regulations for handling ESD-sensitive components!

Always wear approved work clothes and shoes when carrying out assembly work .
Do not remove new parts from ESD (electrostatic discharge) protective packaging until shortly before installation .
Do not touch electric pins and plug contacts .

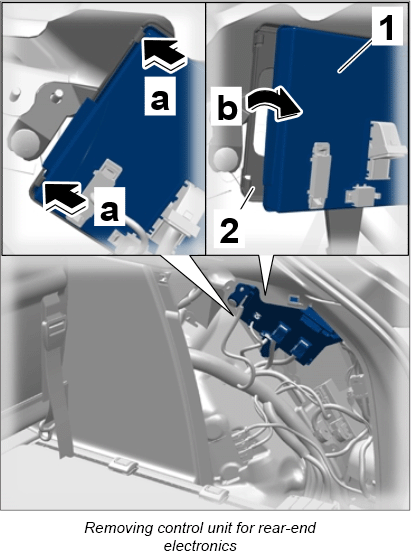

Unclip control unit for rear-end electronics -1- from the holder -2- (-a- ) and swivel it out -b- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

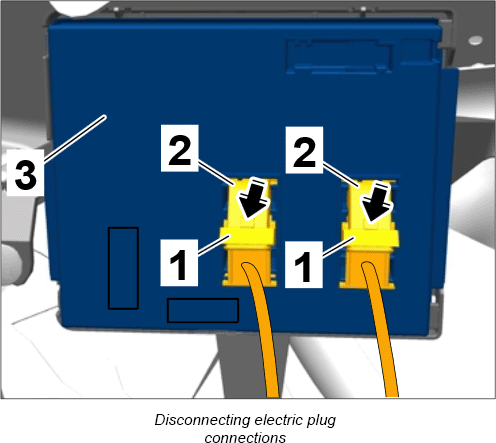

Release electric plug connections -1- and disconnect them from the rear-end electronics control unit -2- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Release the swivel bar -1- , swivel it up and disconnect electric plug connections -2- from the rear-end electronics control unit -3- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.
