Technical values

WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.

TORQUE SPECIFICATION

Location	Type	Basic value	Tolerance 1
Fastening screw for door arrester	Tightening torque	33 Nm (24 ft. lb..)

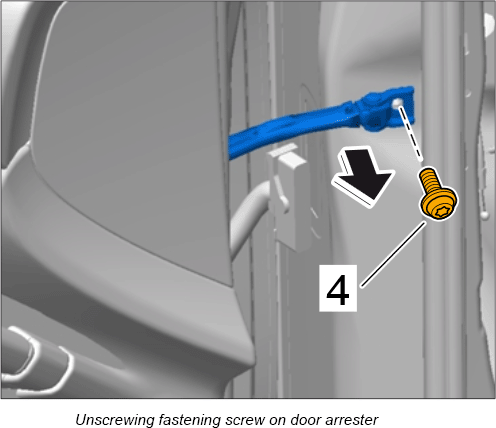

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Unscrewing fastening screw on door arrester
Fastening screw for hinge	Tightening torque	27 Nm (20 ft. lb..)	+/-3.5 Nm (+/-2.5 ft. lb..)

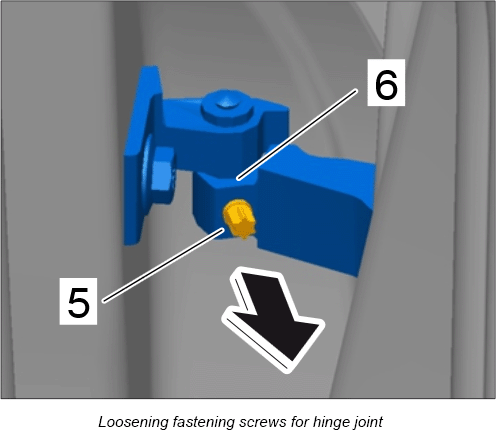

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Loosening fastening screws for hinge joint
