Removing front door

WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.

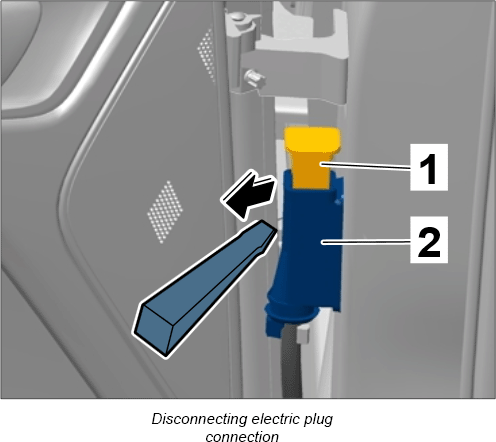

  1. Slide the locking mechanism -1-  up using a suitable tool and disconnect plug connection -2-  .
    G12835139Courtesy of PORSCHE CARS NORTH AMERICA, INC.

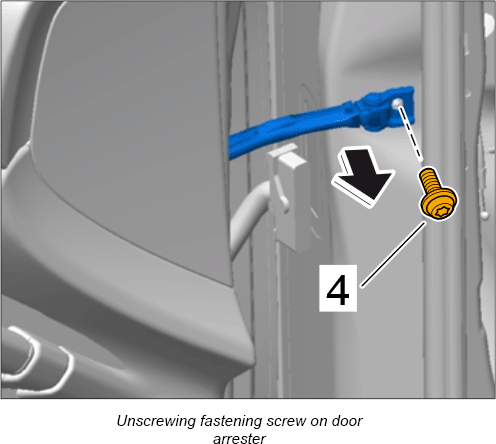

  2. Unscrew and remove fastening screw on the door arrester -4-  at the vehicle door.
    G12835140Courtesy of PORSCHE CARS NORTH AMERICA, INC.

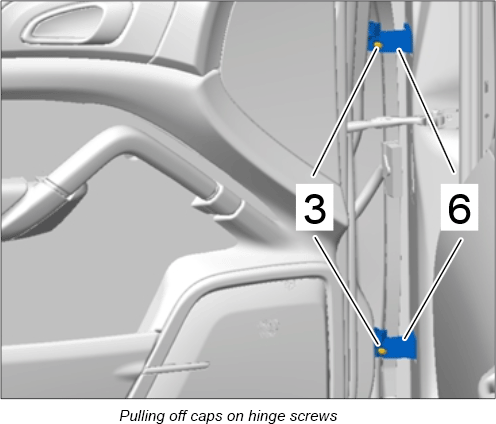

  3. Pull plastic caps -3-  off the hinge screws at the top and bottom hinge joints -6-  .
    G12835141Courtesy of PORSCHE CARS NORTH AMERICA, INC.

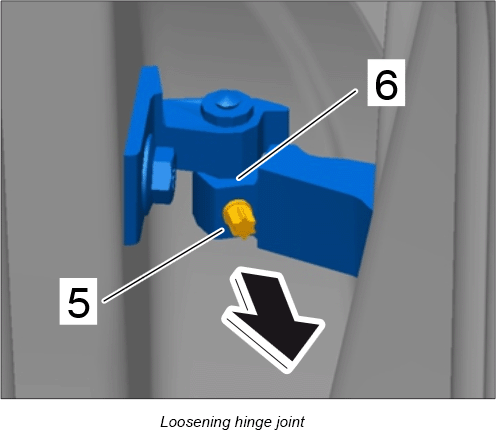

  4. Loosen fastening screws -5-  on the top and bottom hinge joint -6-  .
    G12835142Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  5. Get another person to hold the vehicle door.

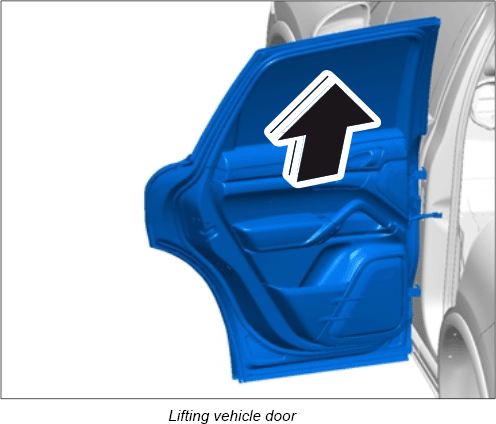

  6. Lift the vehicle door up slightly until the hinge bolts come out of the hinge halves on the door side.
    G12835143Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  7. Remove vehicle door.
