Technical values: Overview

WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.

TORQUE SPECIFICATION

Location	Type	Basic value

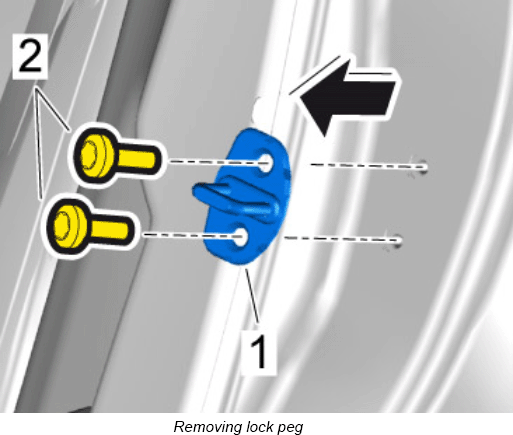

Fastening screw for lock peg (striker pin)	Tightening torque	25 Nm (19 ft. lb..)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

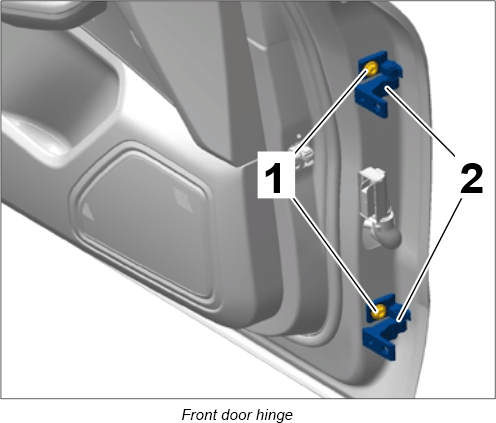

Fastening screw securing hinge to front door	Tightening torque	55 Nm (41 ft. lb..)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Door hinge to outer A-pillar	Tightening torque	50 Nm (37 ft. lb..)

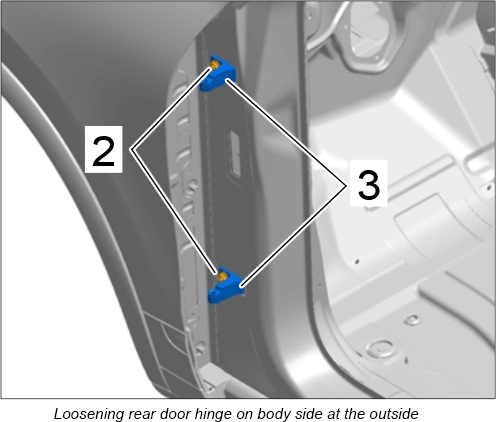

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Loosening rear door hinge on body side at the outside
