Removing inner door release

WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.

Information

The number of fastening screws, fixing clips, plug connections, holders and trim panels can vary depending on equipment .
The illustrations for removing and installing the drive mechanism are shown only on one equipment variant and may differ from the actual equipment variant .
Some steps must be carried out automatically .
Some of the repair illustrations show only one side of the vehicle .

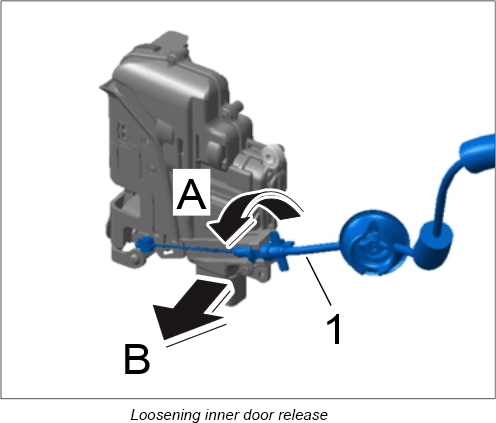

Loosen inner door release -1- at the door lock.
1. 1.1. Turn bowden cable clip by 90° -A- and remove from the bracket -B
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

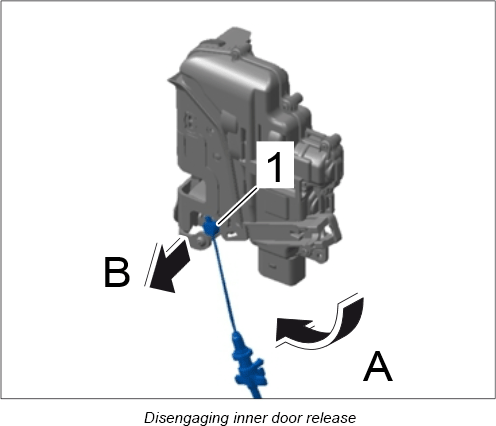

Disengage driver for inner door release.
1. 2.1. Turn inner door release -A- until the actuator in the mounting is released.
2. 2.2. Remove actuator for inner door release -1- from the mounting -B- .

G12835088

Courtesy of PORSCHE CARS NORTH AMERICA, INC.
