Removing lock cylinder
WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.

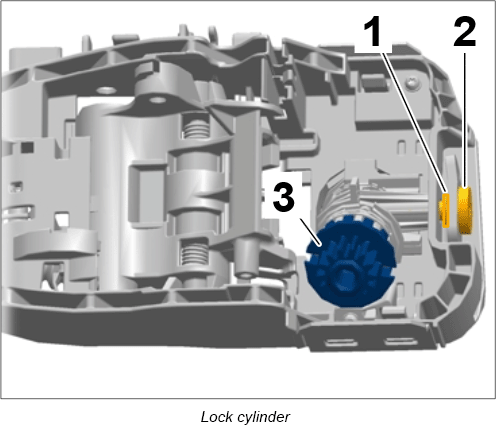

- Remove lock cylinder -3-
.
- 1.1. Unclip lock -1-
on the screw -2-
for the lock cylinder.
- 1.2. Unscrew screw -2-
completely on inner part of door handle.
- 1.3. Remove lock cylinder -3-
by pulling it upwards.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
