Disassembling key

WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.

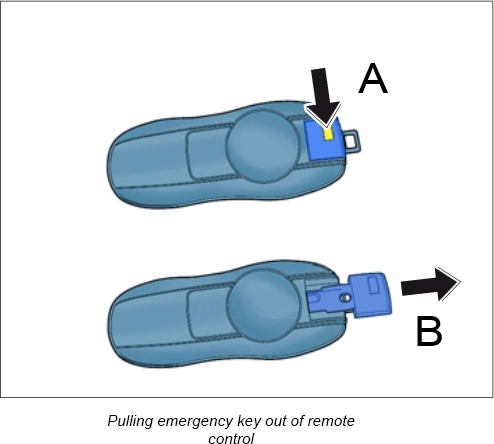

  1. Disengage locking mechanism -A-  and pull emergency key about 15 mm out of the remote control -B-  .
    G12835061Courtesy of PORSCHE CARS NORTH AMERICA, INC.

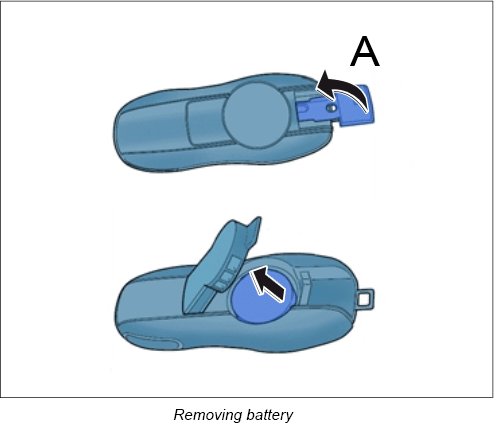

  2. Open up battery compartment lid up with emergency key -A-  .
  3. Remove battery from the remote control.
G12835062Courtesy of PORSCHE CARS NORTH AMERICA, INC.
