Removing reversing light

WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.

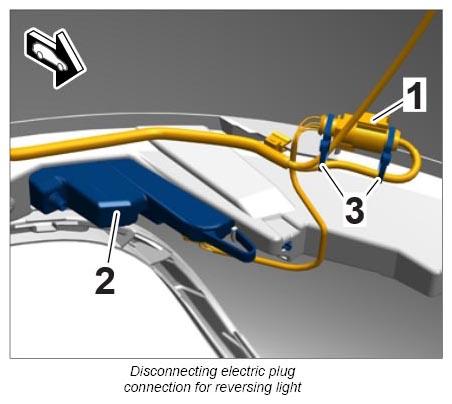

  1. Disconnect electric plug connection -1-  for reversing light -2-  .
    1. 1.1. Cut the tie-wraps -3-  .
    2. 1.2. Release and disconnect electric plug connection.
    G12837345

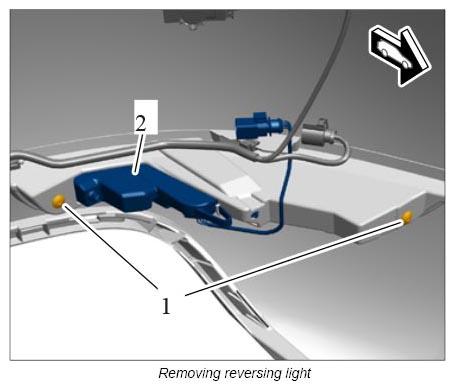

  2. Unscrew fastening screws -1-  and remove reversing light -2-  from the rear apron.
G12837346
