Removing fog lights

WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.

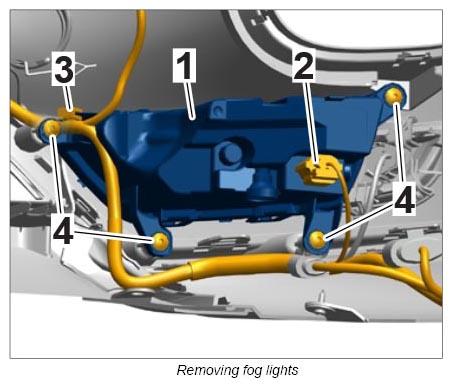

  1. Remove fog light -1-  .
  1. 1.1. Release and disconnect electric plug connection -2-  .
  2. 1.2. Pull off holder -3-  for the electric line at the fog light.
  3. 1.3. Unscrew fastening screws -4-  and remove fog light.
G12837339
