Removing light bulb igniter

WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.

Information

Always comply with the regulations for handling ESD-sensitive components!

Always wear approved work clothes and shoes when carrying out assembly work .
Do not remove new parts from ESD (electrostatic discharge) protective packaging until shortly before installation .
Do not touch electric pins and plug contacts .

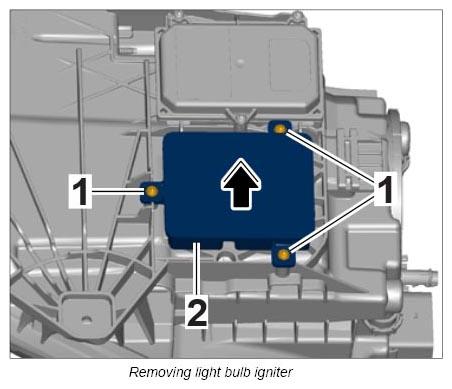

Unscrew fastening screws -1- .
Carefully remove light bulb igniter -2- from the headlight.

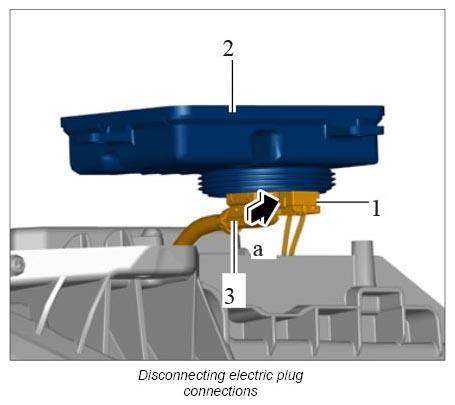

Release electric plug connection -1- (-a- ) and pull it off the light bulb igniter -2- .
Pull electric plug connection -3- off the light bulb igniter.
